Cold Plate and Liquid Cooled Assemblies

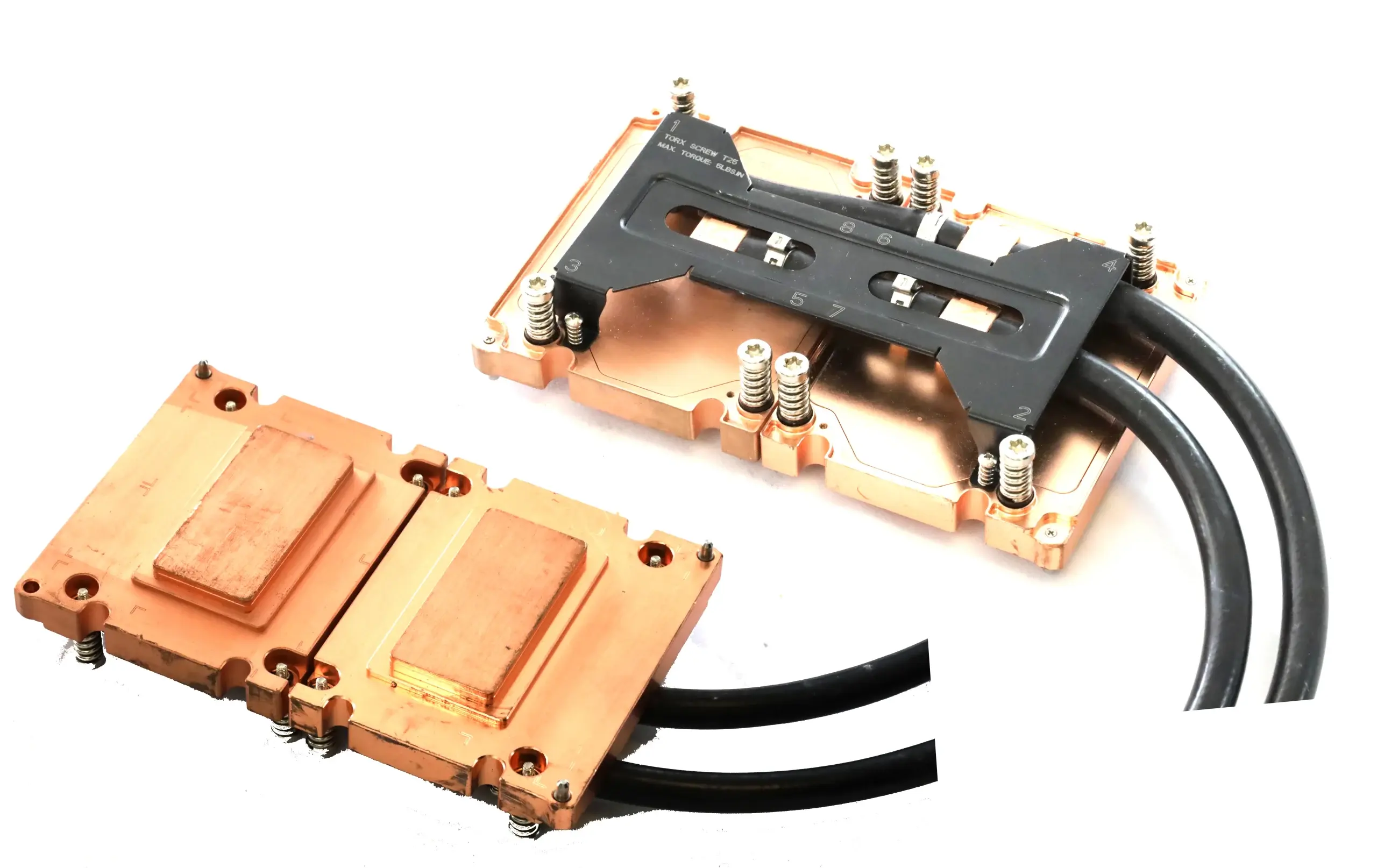

A liquid-cooled assembly is a complete thermal management system that integrates cold plates, tubing, connectors, and manifolds into a unified solution. Unlike a standalone cold plate, it manages both heat transfer and fluid flow as one system. This integrated approach improves cooling efficiency, simplifies system design, and delivers more reliable performance in high-power applications.

Yes, cold plates are designed to handle extremely high heat loads that exceed the capabilities of air cooling systems. They remove heat directly from the source using circulating liquid, which is far more efficient than air. This makes them ideal for high-power electronics, dense packaging environments, and applications requiring consistent thermal control.

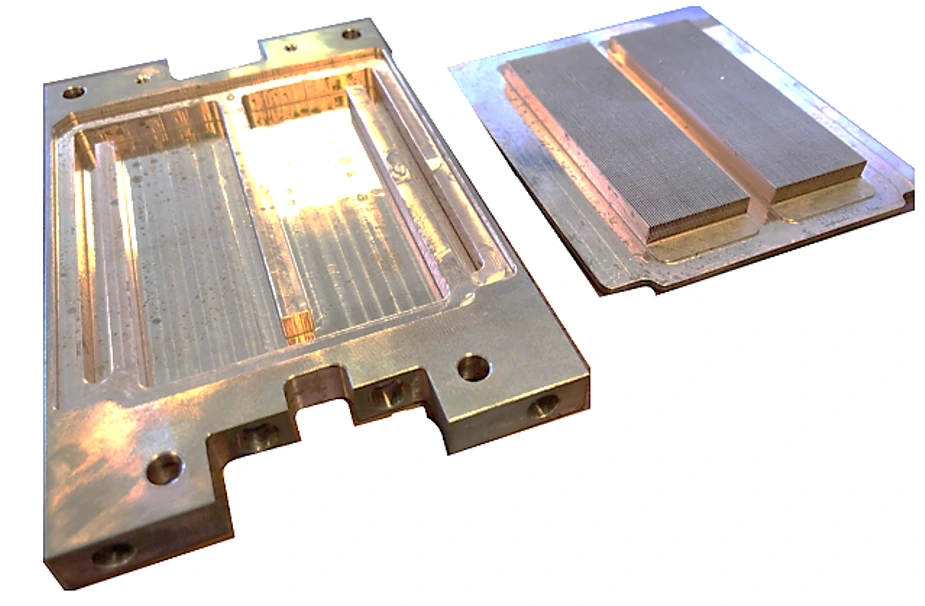

Common cold plate designs include straight channels, serpentine paths, pin-fin structures, and microchannel configurations. Each design is selected based on heat flux, pressure drop, and cooling performance requirements. Advanced designs can be customized to balance efficiency, flow distribution, and manufacturability for specific applications.

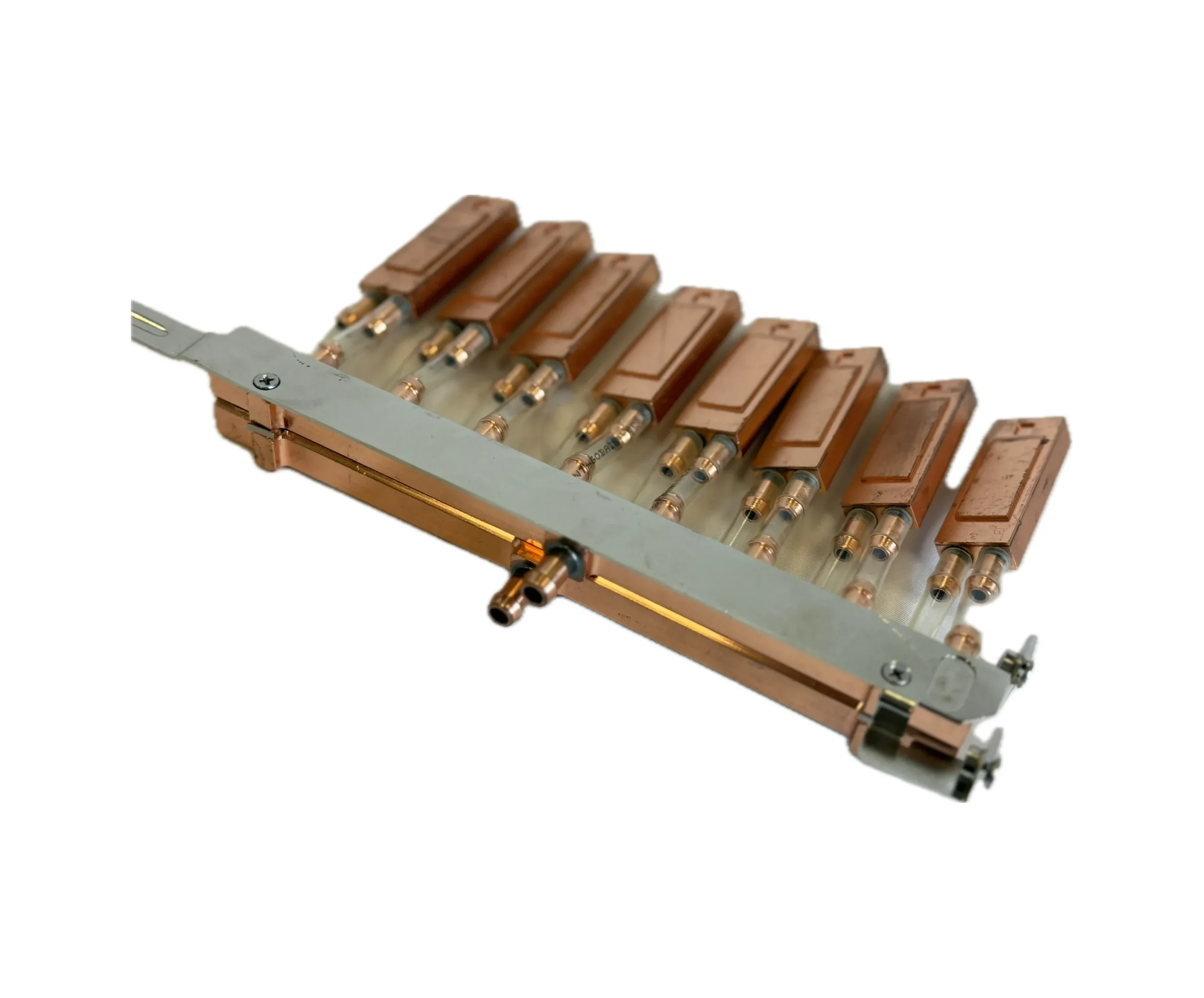

Coolant flow in a liquid-cooled assembly is managed through engineered channels, manifolds, and precision fittings. These components control flow direction, velocity, and distribution across the cooling system. Proper flow management ensures uniform heat removal, reduces thermal gradients, and prevents hotspots that could impact system performance.

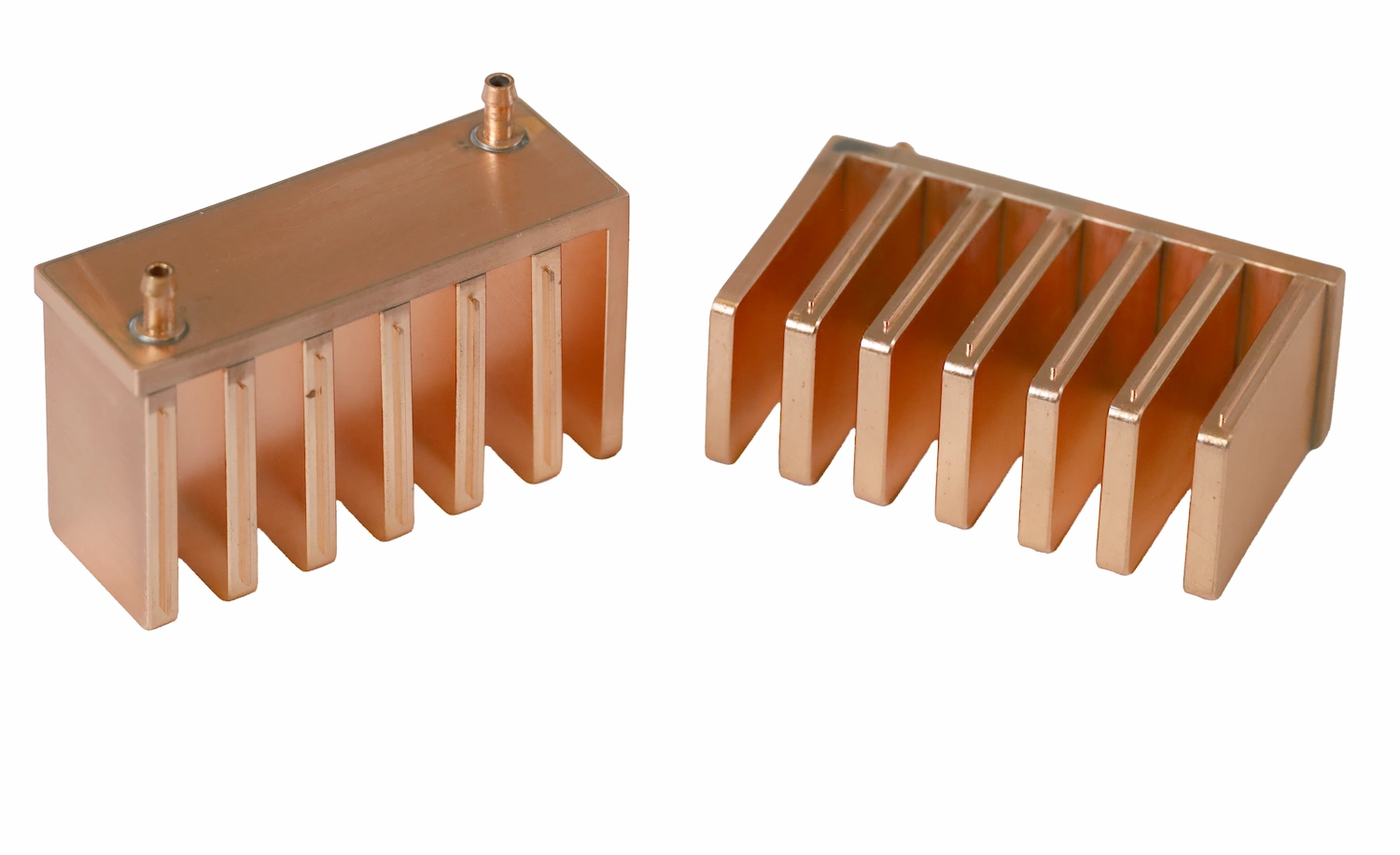

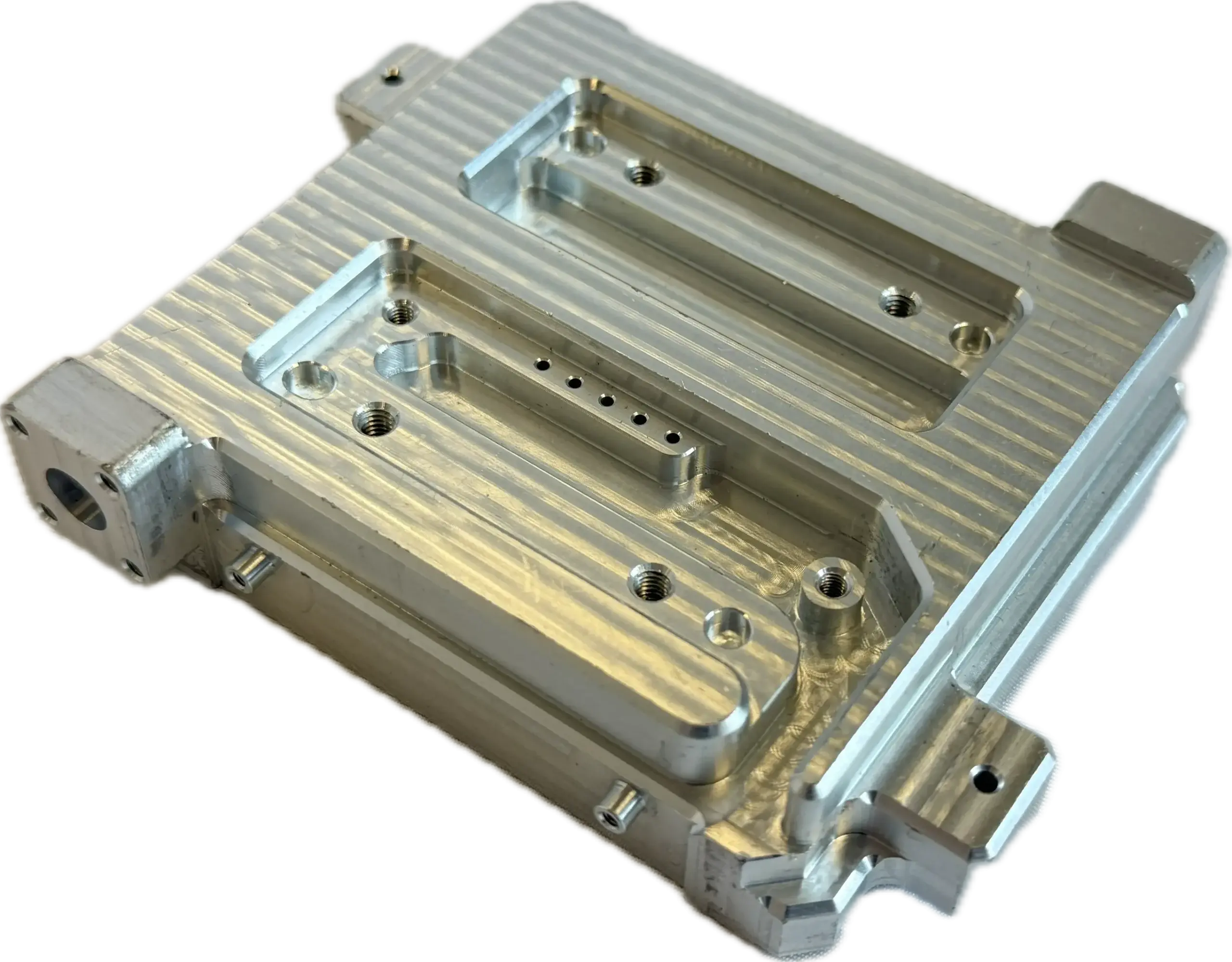

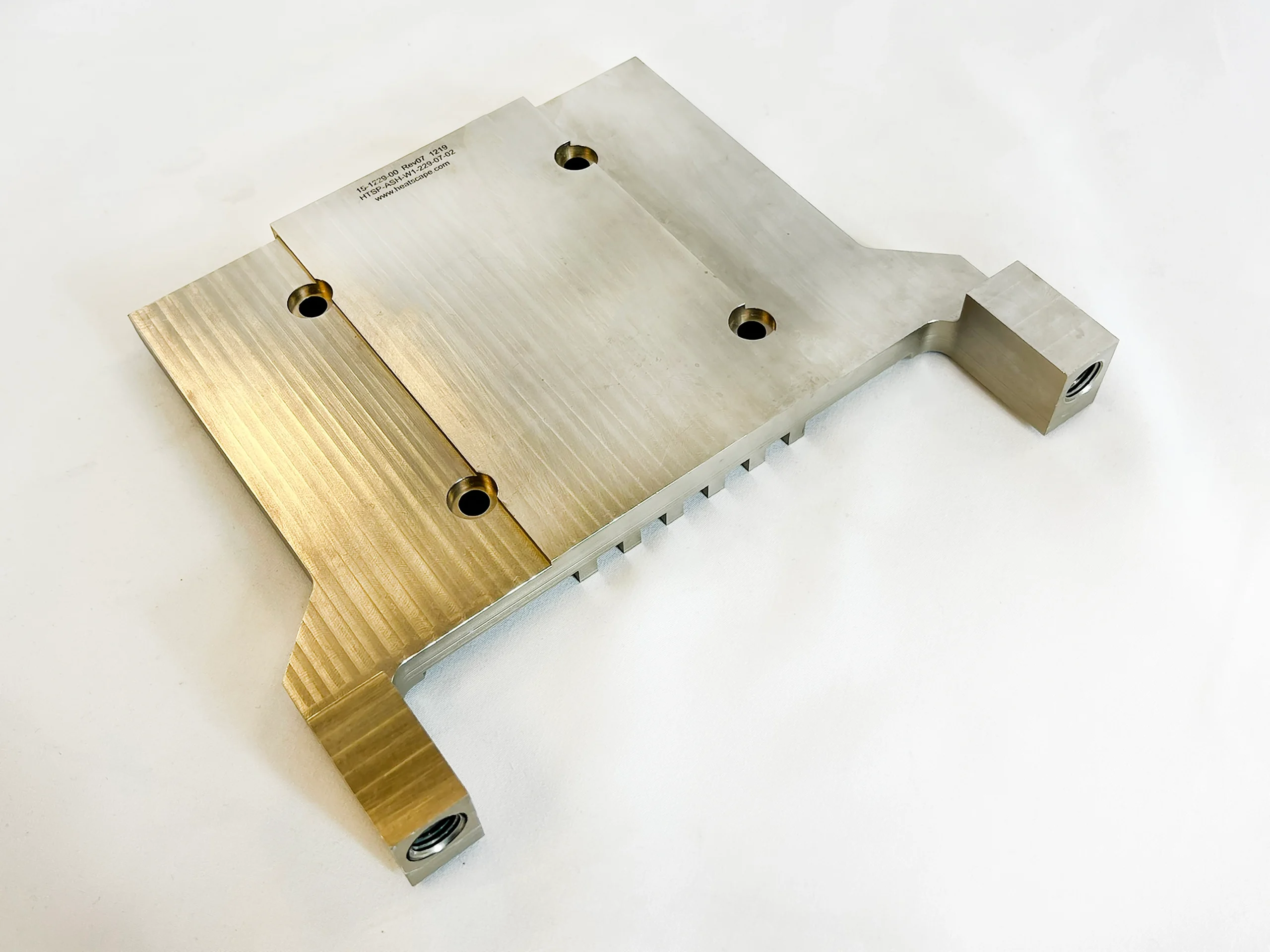

Cold plates are typically made from aluminum or copper due to their high thermal conductivity and durability. Aluminum is lightweight and cost-effective, while copper offers superior heat transfer performance. Material selection depends on factors such as thermal requirements, corrosion resistance, weight constraints, and overall system design.

Key design considerations include heat load, coolant type, flow rate, pressure drop, sealing methods, and integration with the overall system. Engineers must also consider reliability, manufacturability, and maintenance requirements. A well-designed system ensures efficient cooling, long-term stability, and consistent performance under demanding conditions.

Yes, liquid-cooled assemblies are ideal for mission-critical systems that require stable and high-performance thermal management. They provide consistent cooling even under extreme heat loads and continuous operation. This reliability makes them essential for applications such as data centers, AI hardware, and industrial systems where failure is not an option.
