Custom Thermal Test Vehicles TTV

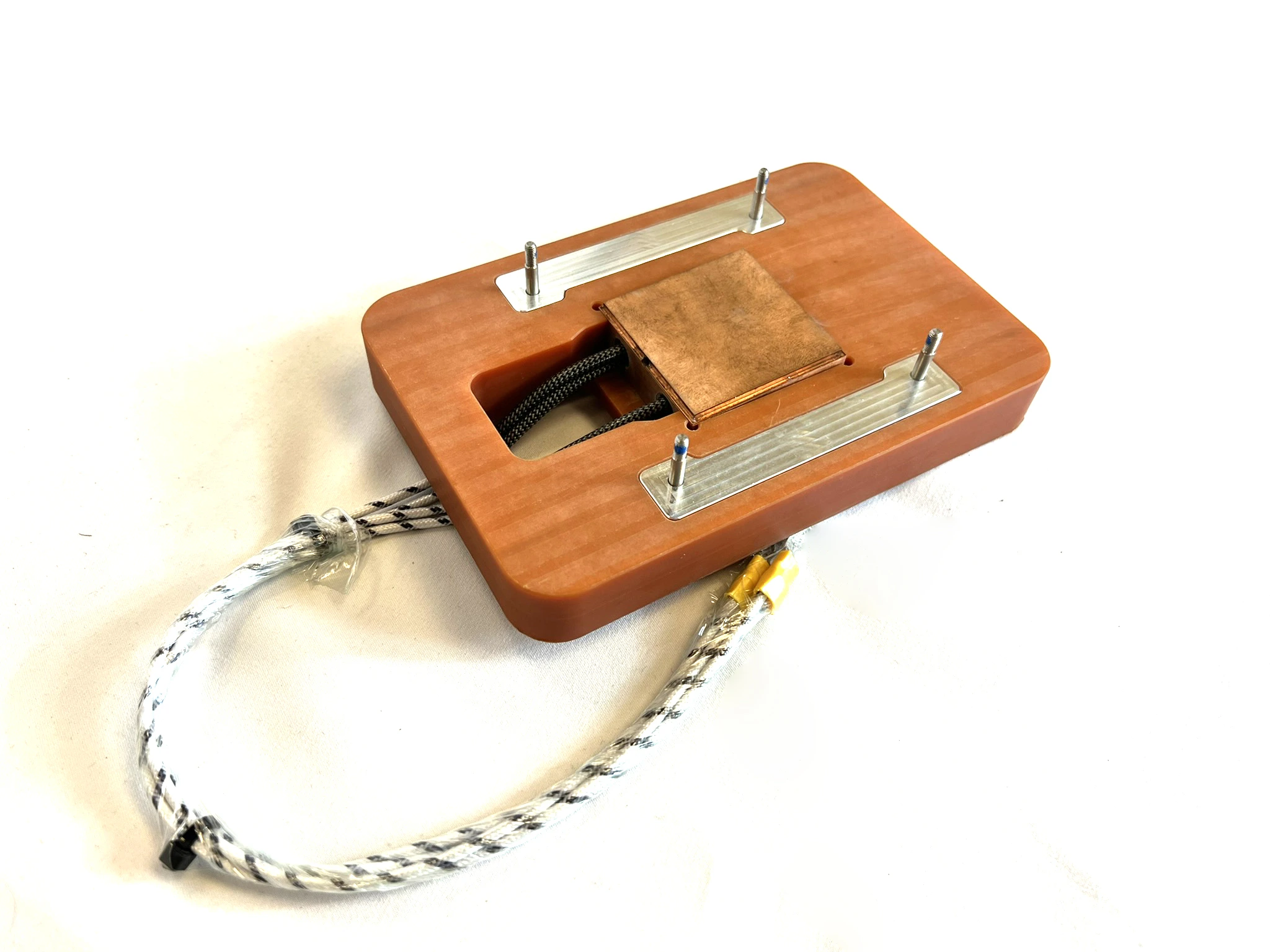

A thermal test vehicle (TTV) is a device that simulates the heat output of real electronic components for thermal testing. It allows engineers to evaluate cooling solutions without needing the actual chip. This enables accurate testing during early development stages and helps validate thermal performance before production hardware is available.

A TTV is used to perform thermal testing before production hardware is ready, reducing development time and cost. It allows engineers to evaluate cooling solutions early and identify potential issues before final components are available. This improves design accuracy and minimizes the risk of costly redesigns later in the process.

TTVs are used for heatsink validation, airflow testing, liquid cooling evaluation, and full system thermal analysis. They replicate real-world heat loads to measure cooling performance accurately. This helps engineers verify that thermal solutions meet performance requirements and function effectively under actual operating conditions.

Yes, TTVs can simulate a wide range of power levels and heat distributions, including localized hotspots. This allows engineers to test cooling systems under realistic and varying operating conditions. It ensures that thermal designs perform reliably across different use cases and power scenarios.

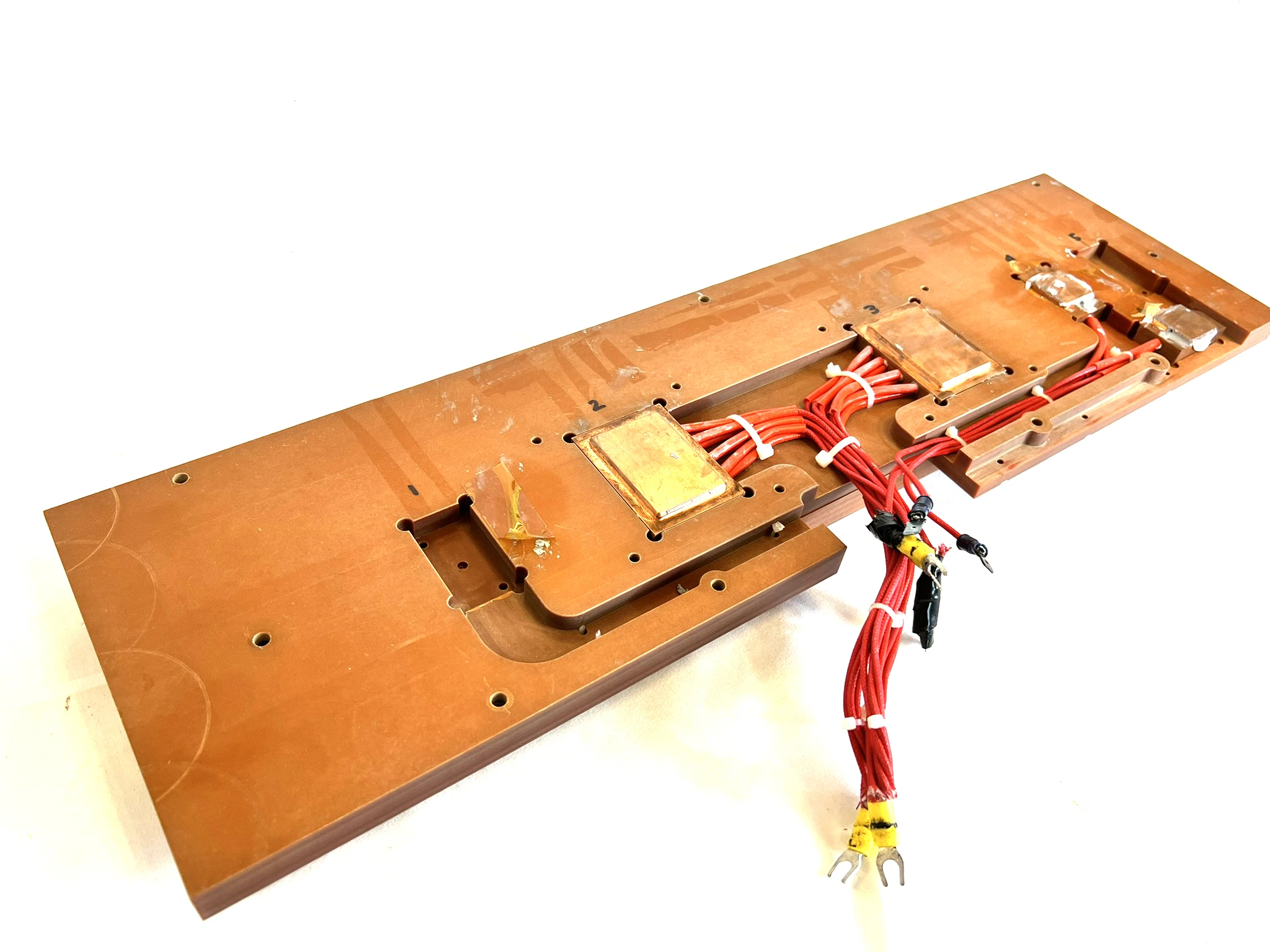

Yes, TTVs can be designed to replicate full boards or multiple components on a PCB. This enables comprehensive system-level testing and analysis. Engineers can evaluate how heat is distributed across the entire system and ensure effective cooling for all components.

To design a custom TTV, engineers need details such as heat load, component layout, power density, and testing objectives. Additional inputs like form factor and environmental conditions may also be required. Providing accurate data ensures the TTV closely represents real-world operating conditions and delivers reliable results.

TTVs improve reliability by enabling engineers to validate and optimize cooling solutions under controlled conditions. They help identify potential overheating issues early and allow for design adjustments before production. This reduces risk, improves product performance, and ensures consistent thermal management in real-world applications.
