Optical Transceiver Module Cooling

High-speed optical networks rely on compact transceiver modules that must operate reliably under increasing bandwidth and power demands. As QSFP, OSFP, CFP, and other advanced modules generate more heat in limited space, precision cooling is essential for stable signal performance and long-term reliability. Custom optical transceiver cooling solutions can include heatsinks, heat spreaders, vapor chambers, and engineered thermal interfaces designed to remove heat efficiently from sensitive components. Heatscape’s engineering team can support these applications with CFD thermal analysis, advanced thermal testing, and custom mechanical design and DFM for data centers, telecom equipment, and high-performance networking systems.

Long Length, Thin Vapor Chamber Heatsink

Zipper Fin heatsink, with Thermal Grease Applied

Custom Heatpipe Assembly

Vapor Chamber Heatsink Solution

Unique PCIe Heatsink Solution

High-performance Heatpipe Assembly

Custom Parallel Flow Cold Plate and Manifold Assembly

Curved Thin Vapor Chamber

Dual Heatpipe Solution

Thin Form-factor Vapor Chamber

High-Volume Zipper Fin Heatsink

Multi-Heatpipe Cooling Assembly

Custom Copper Cooler with Heatpipes

Custom Designed Cooler with Integrated Heatpipe

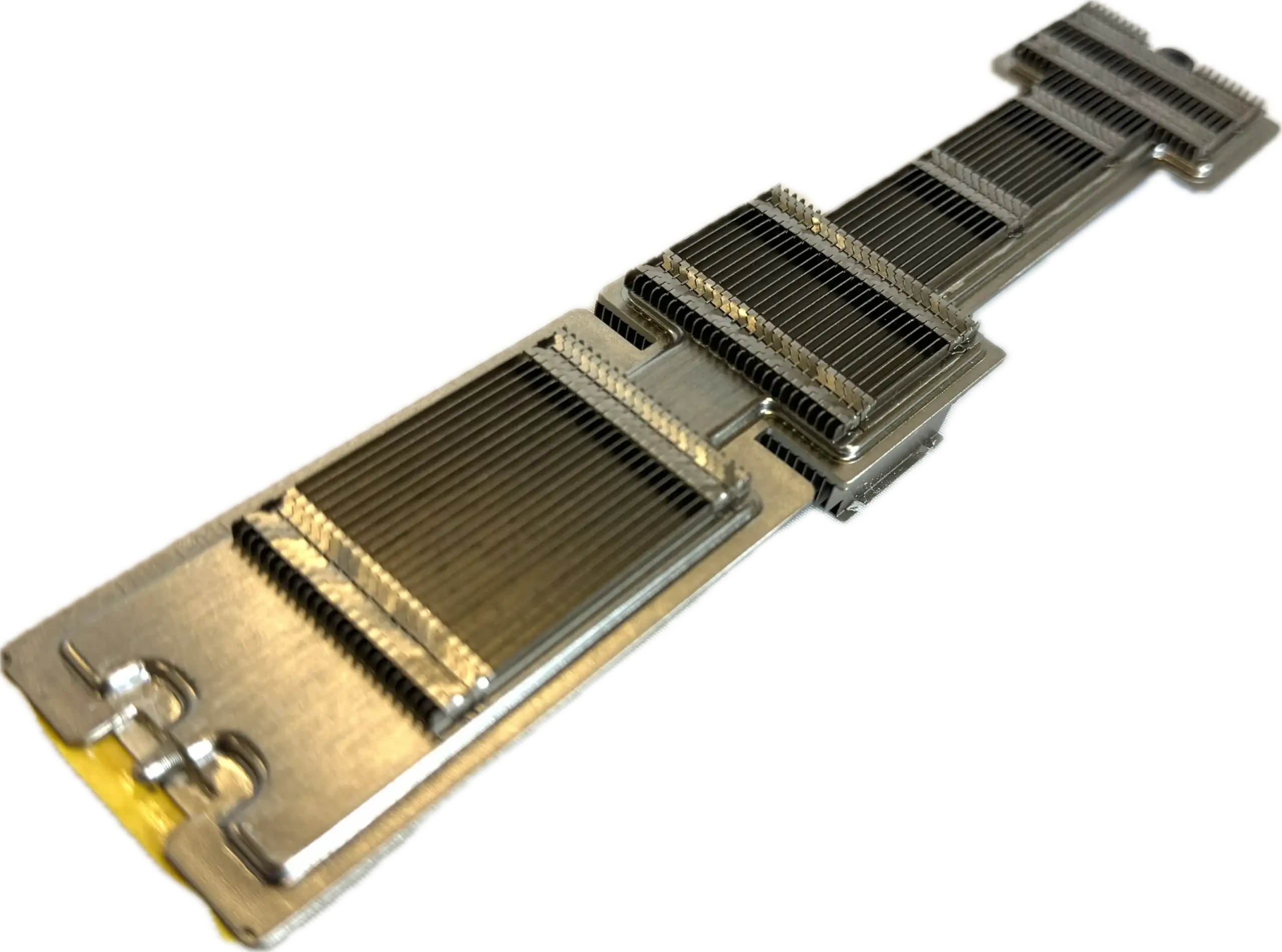

Long Length, Thin Vapor Chamber Heatsink

Long length, thin vapor chamber heatsink for cooling of larger pluggable optical transceiver. The longer vapor chamber moves heat, with help of specializes thermal pad, from the module to the far reaches of the heatsink for improved cooling.

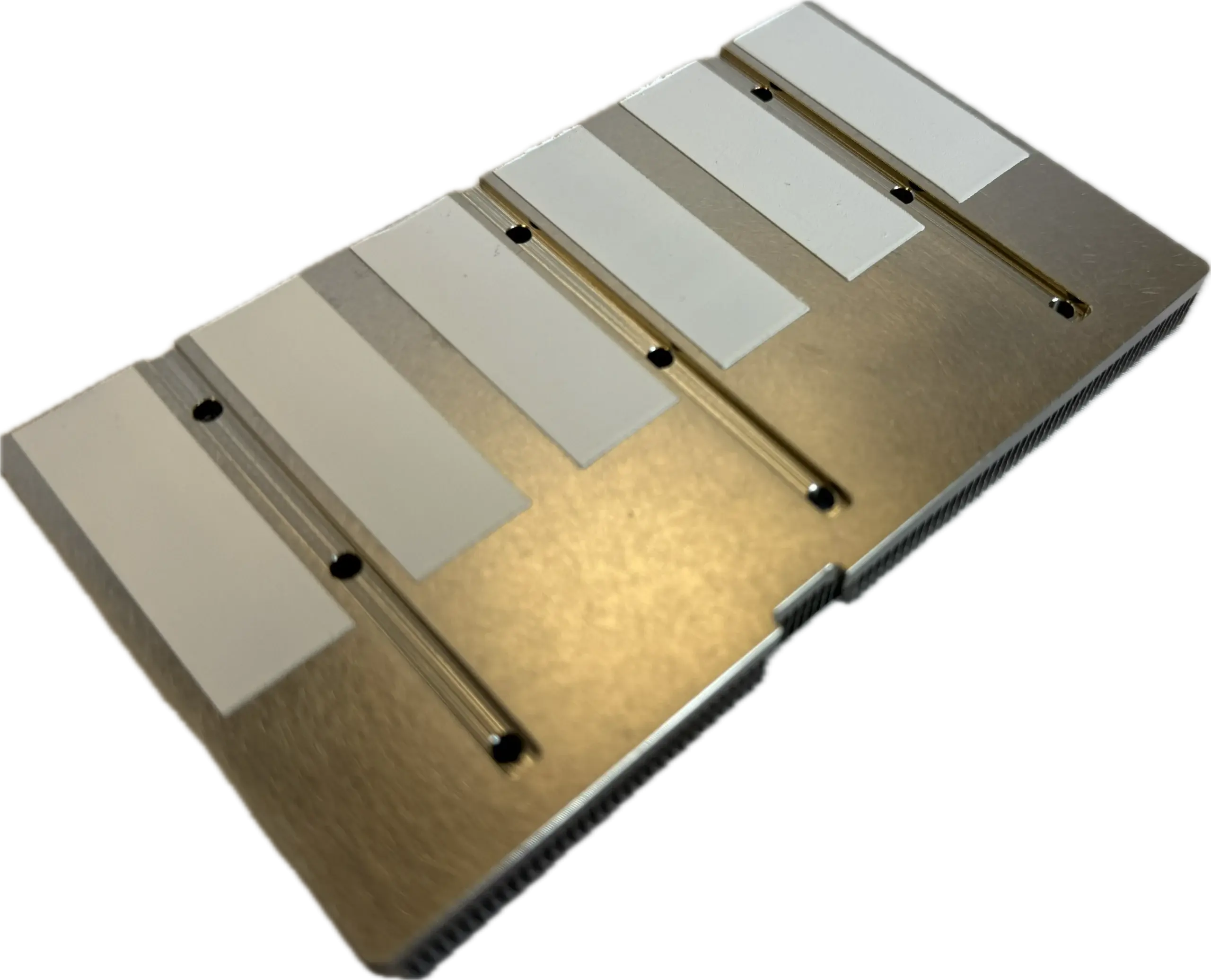

Zipper Fin heatsink, with Thermal Grease Applied

Zipper fin heatsink, with thermal grease applied, to be used with thermal bridge for cooling of high-powered optical transceivers.

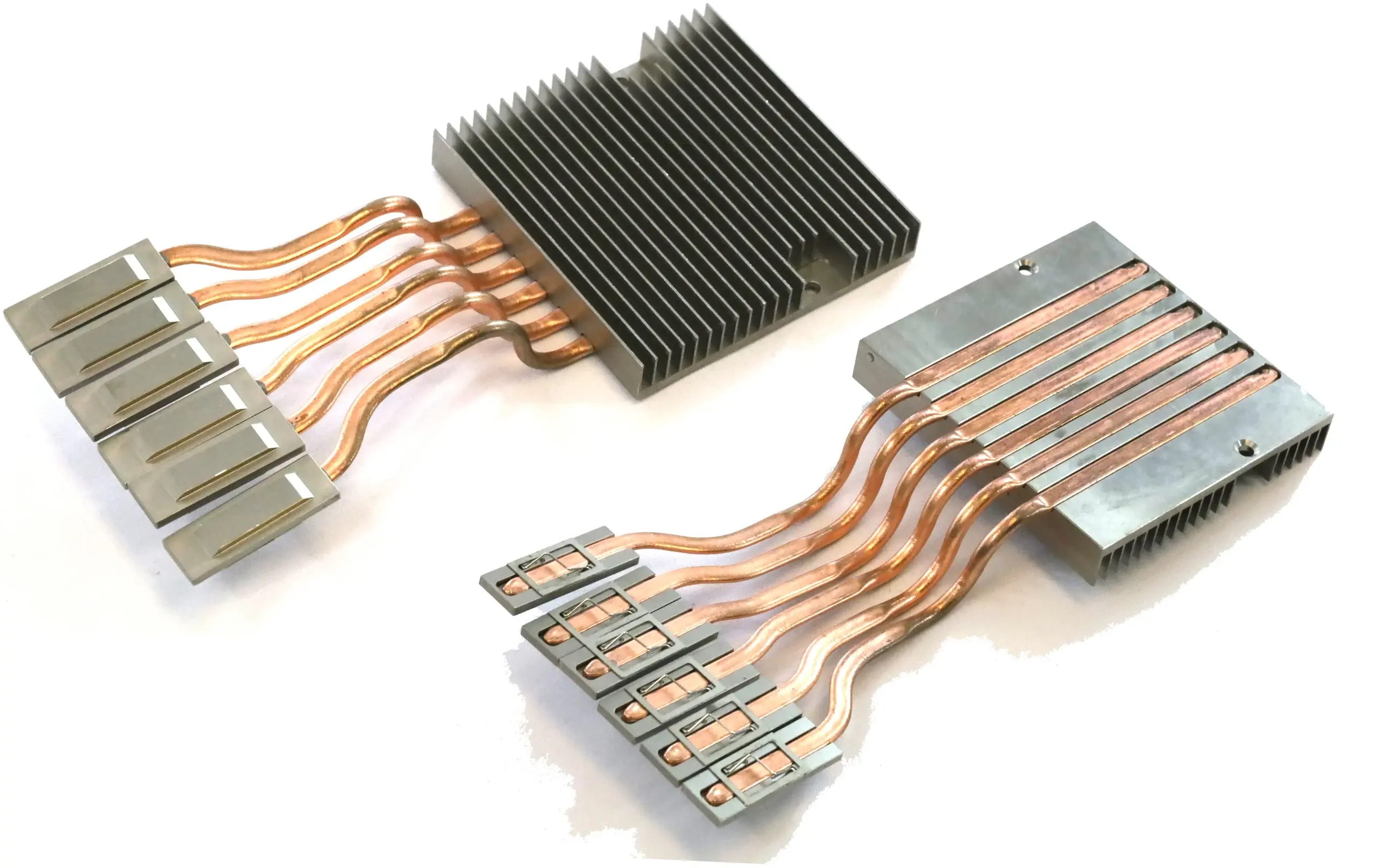

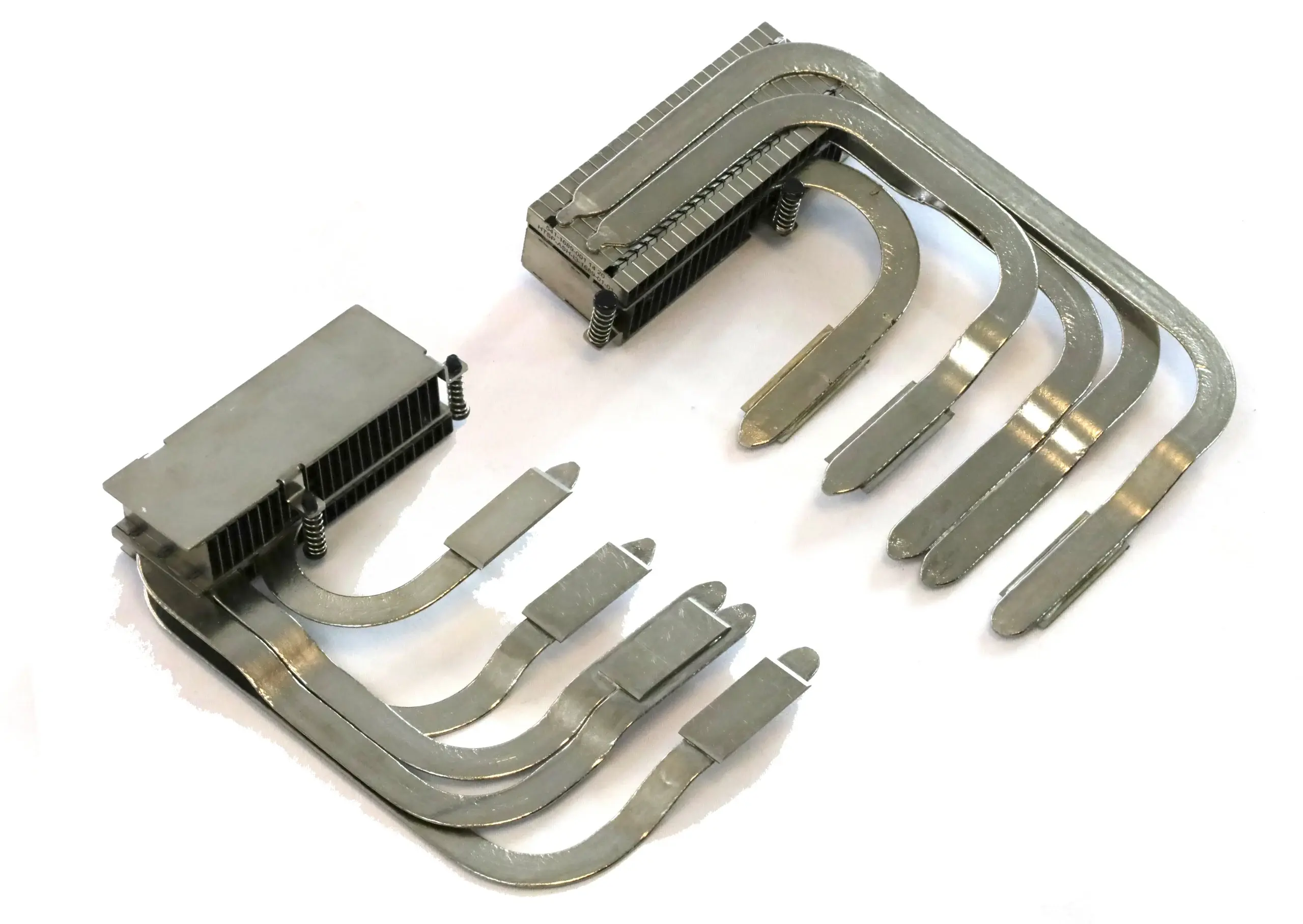

Custom Heatpipe Assembly

Custom heatpipe assembly designed for cooling multiple ganged pluggable optical modules. Heatpipes move the heat from the module to a remote radiator that is located in a higher airflow region.

Custom Heatpipe Assembly

Custom heatpipe assembly designed for cooling multiple ganged pluggable optical modules. Heatpipes move the heat from the module to a remote radiator that is located in a higher airflow region.

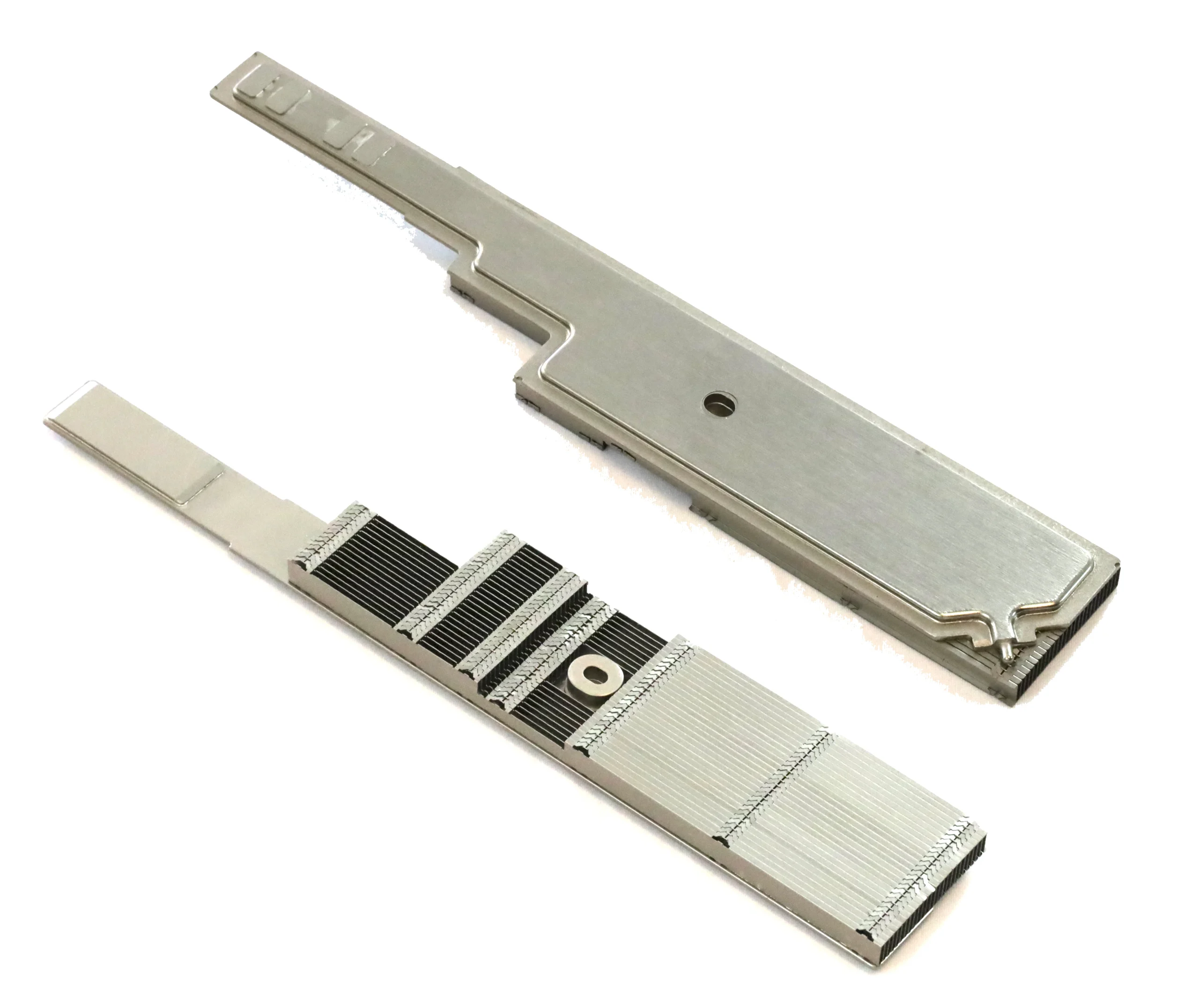

Vapor Chamber Heatsink Solution

Vapor chamber heatsink solution engineered for cooling of high-powered pluggable optics.

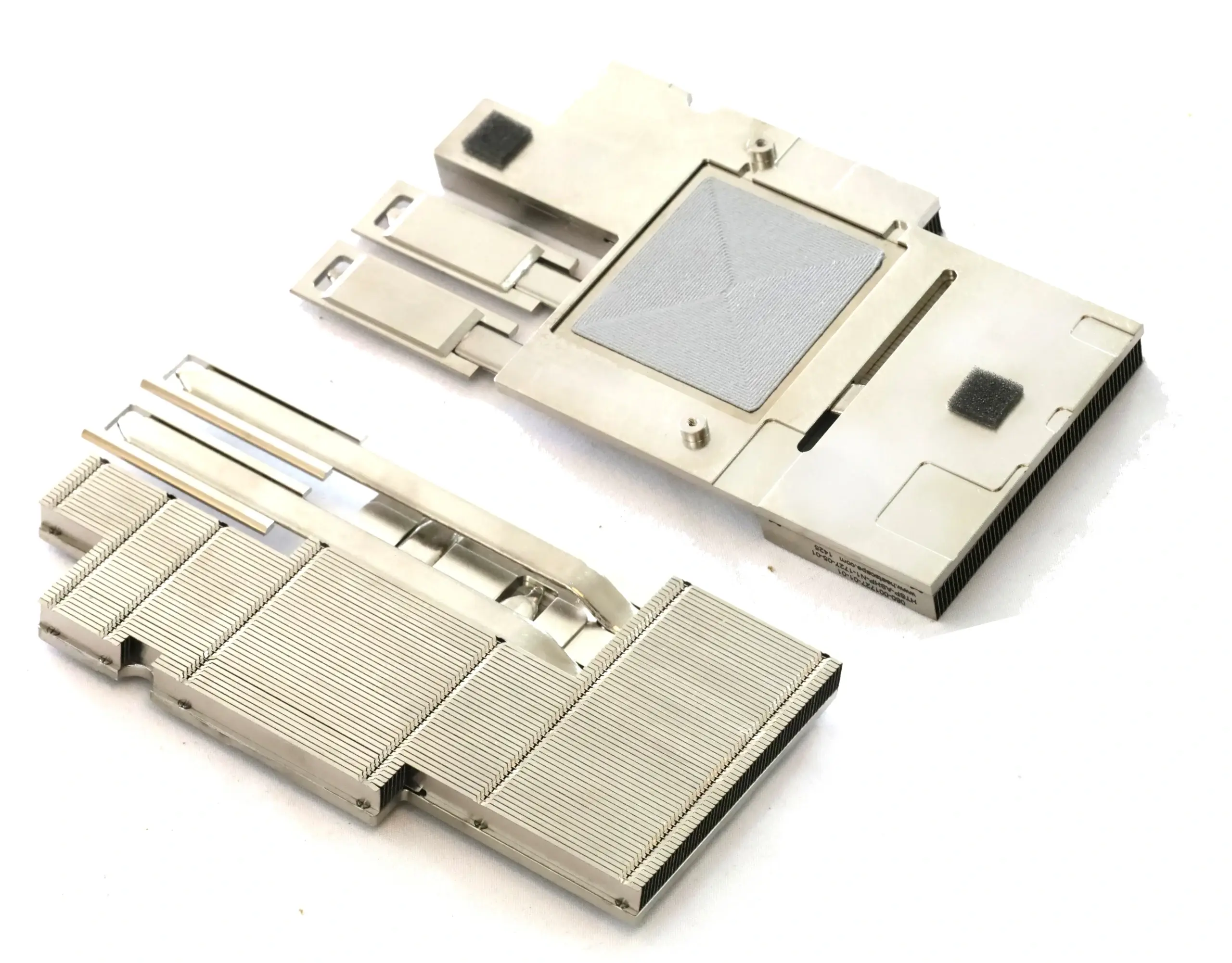

Unique PCIe Heatsink Solution

Unique PCIe heatsink solution that uses the large heatsink mass to cool pluggable optical modules, in addition to cooling the main ASIC.

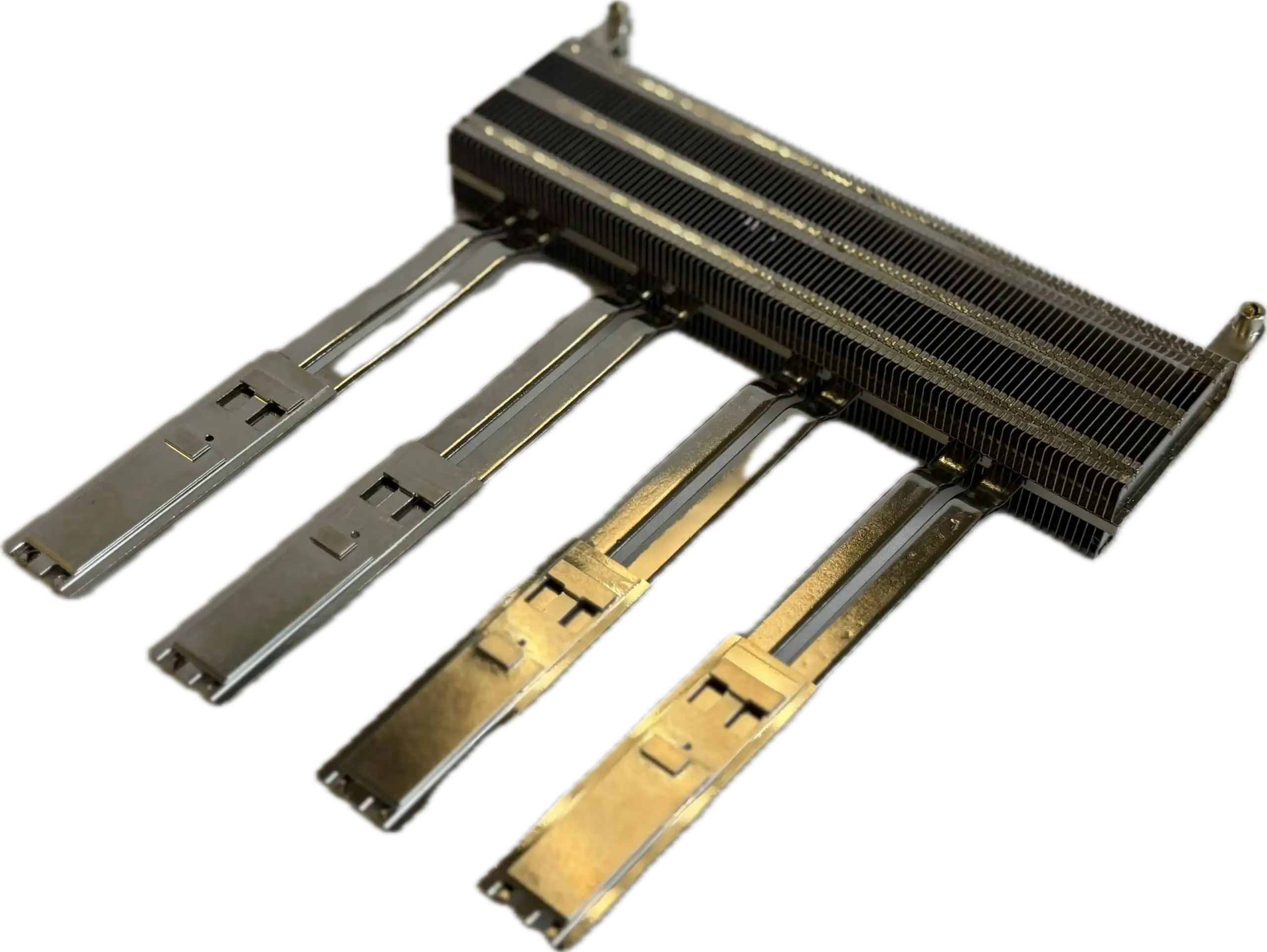

High-performance Heatpipe Assembly

High-performance heatpipe assembly for cooling high-powered pluggable optics, moving heat away from module to remote radiator stack with increased surface area.

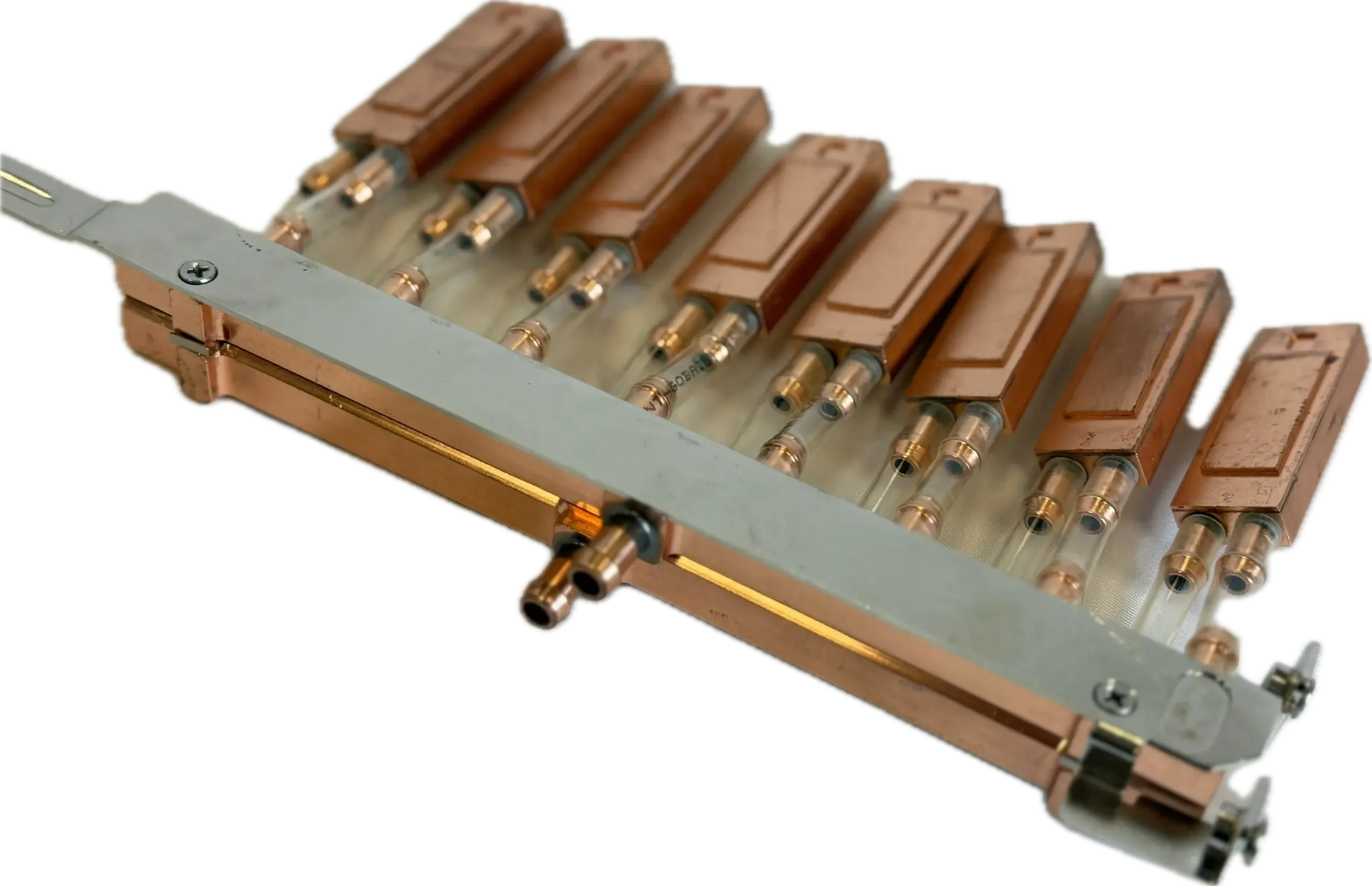

Custom Parallel Flow Cold Plate and Manifold Assembly

Custom parallel flow cold plate and manifold assembly for liquid cooling of high-powered pluggable optics. Manifold receives incoming flow, and routes fresh water to all optical cold plates, without any pre-heating effect.

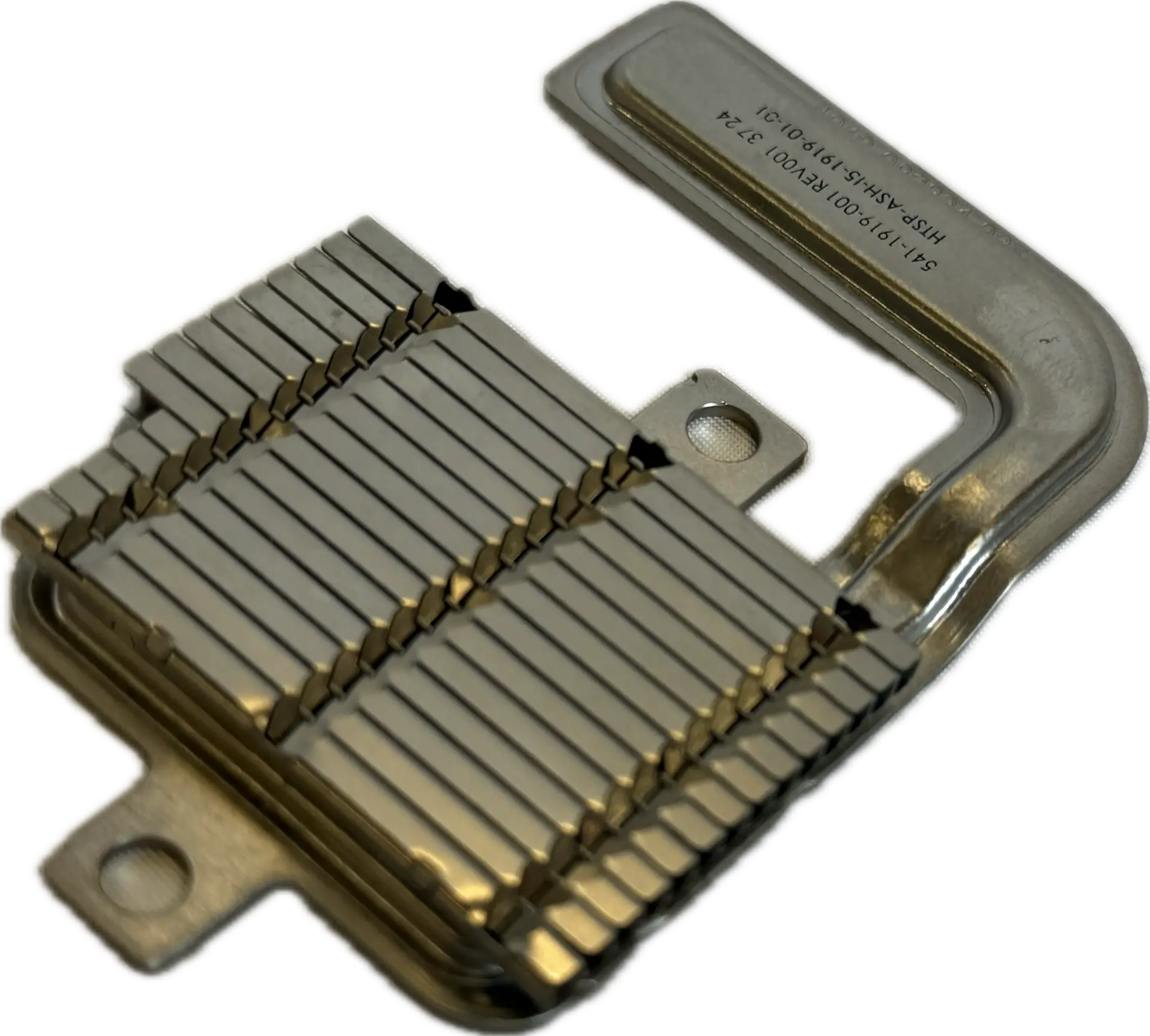

Curved Thin Vapor Chamber

Thin vapor chamber with curvature introduced, for cooling of high-powered pluggable optics in very low-height applications.

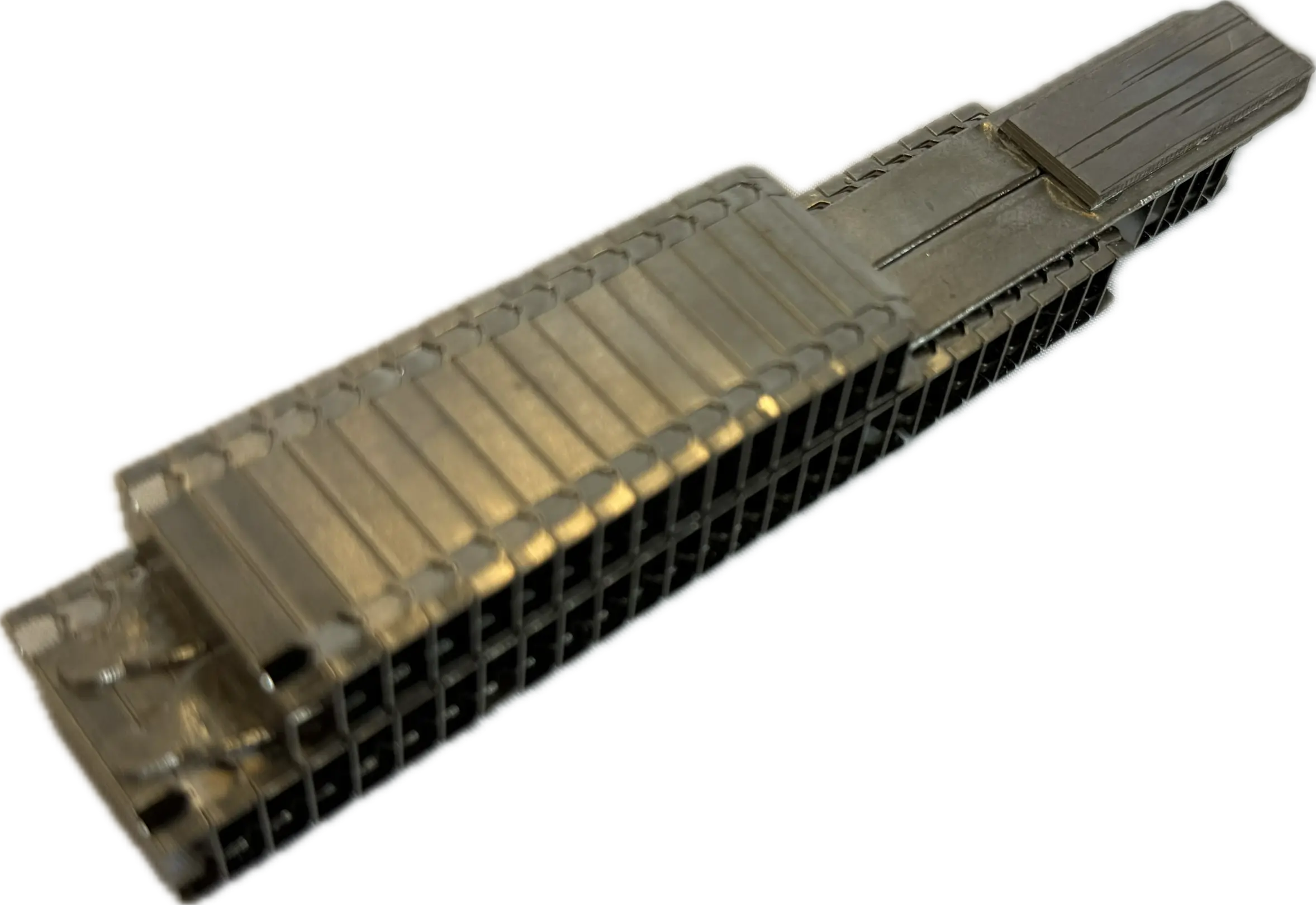

Dual Heatpipe Solution

Dual heatpipe solution for cooling of high-powered pluggable optical transceiver

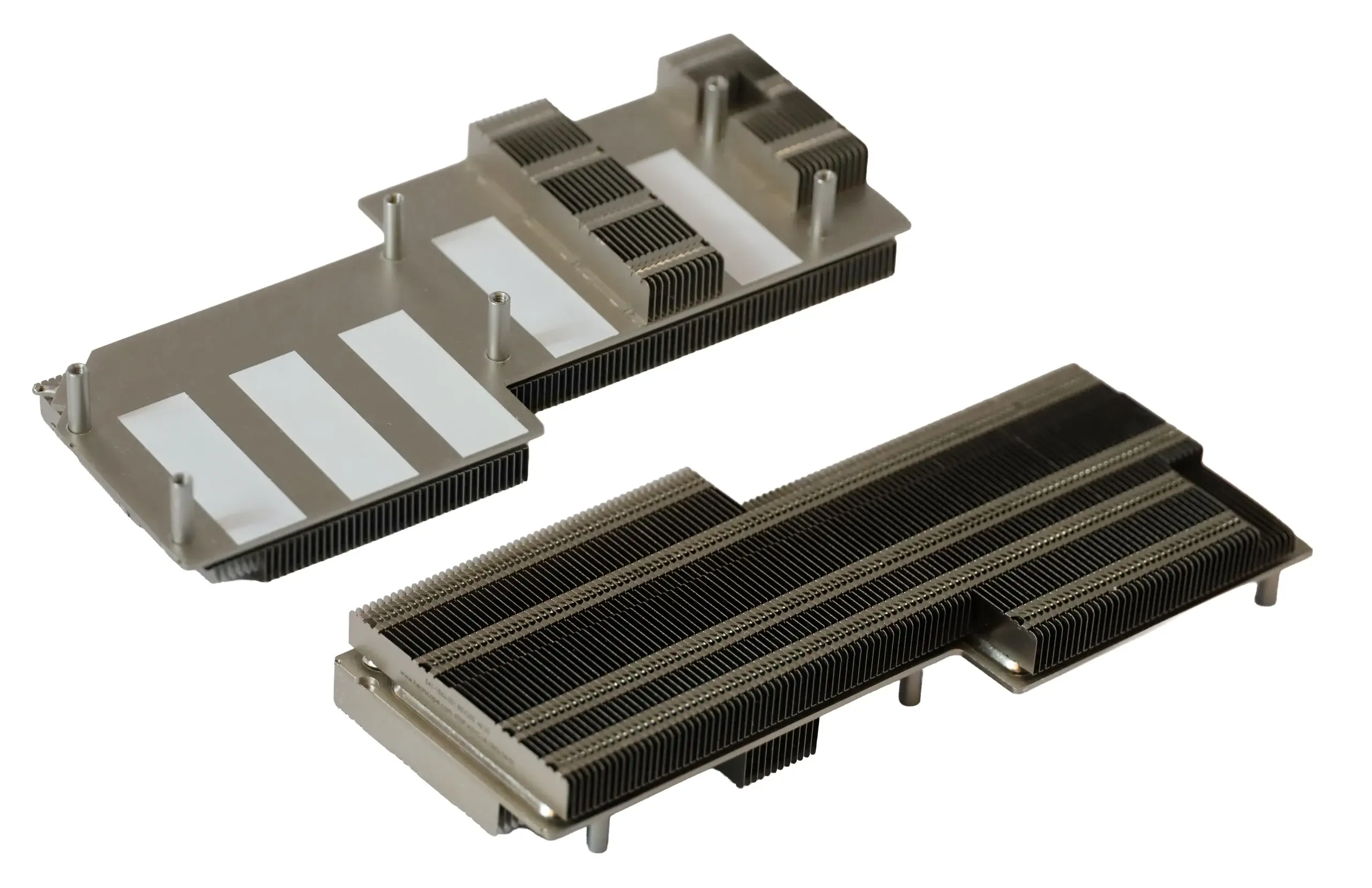

Thin Form-factor Vapor Chamber

Thin form-factor vapor chamber, designed for cooling of high-powered pluggable optical transceivers, with use of TIM.

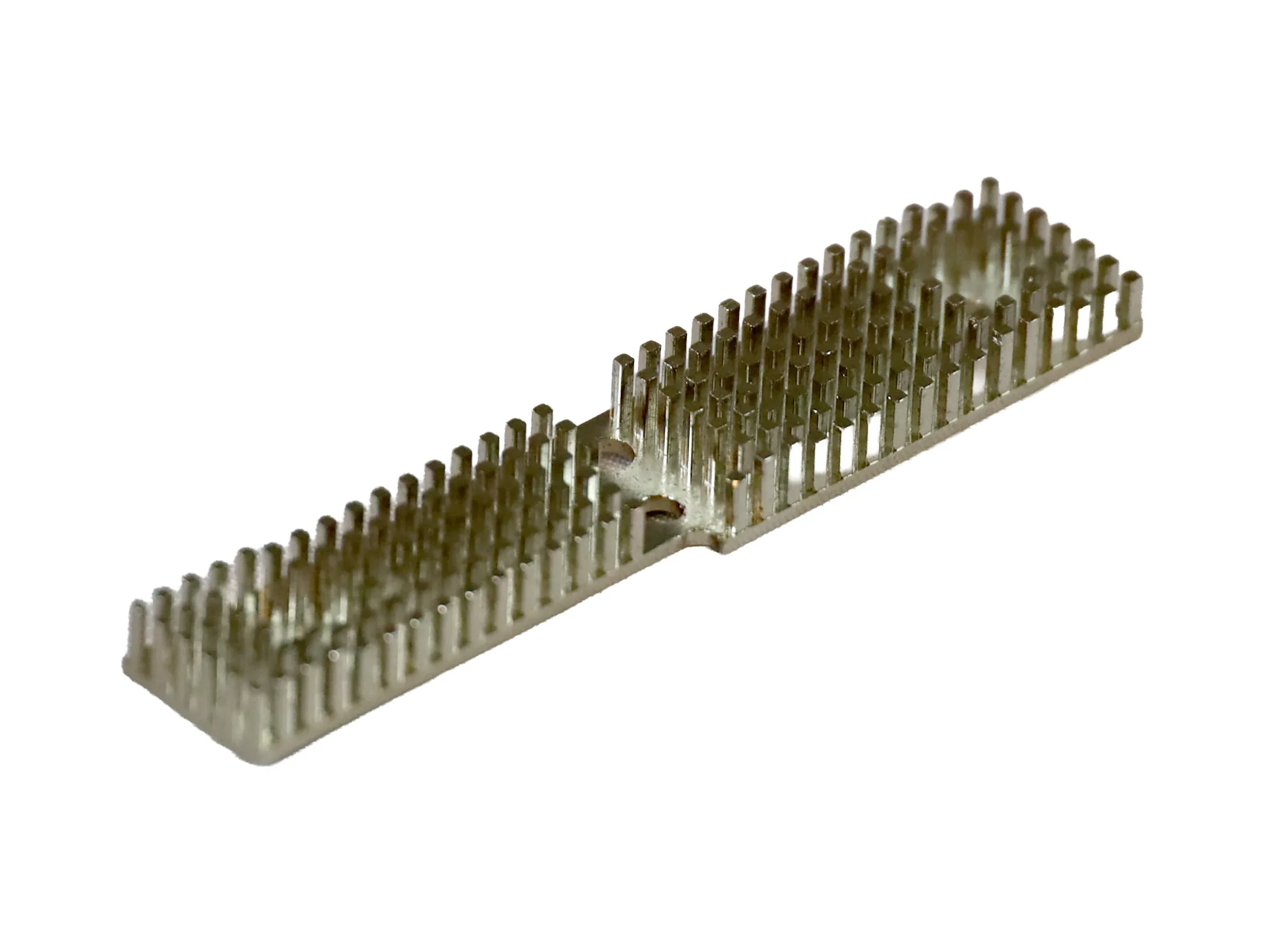

High-Volume Zipper Fin Heatsink

Scalable and reliable high-volume solution for cooling of pluggable optical transceiver.

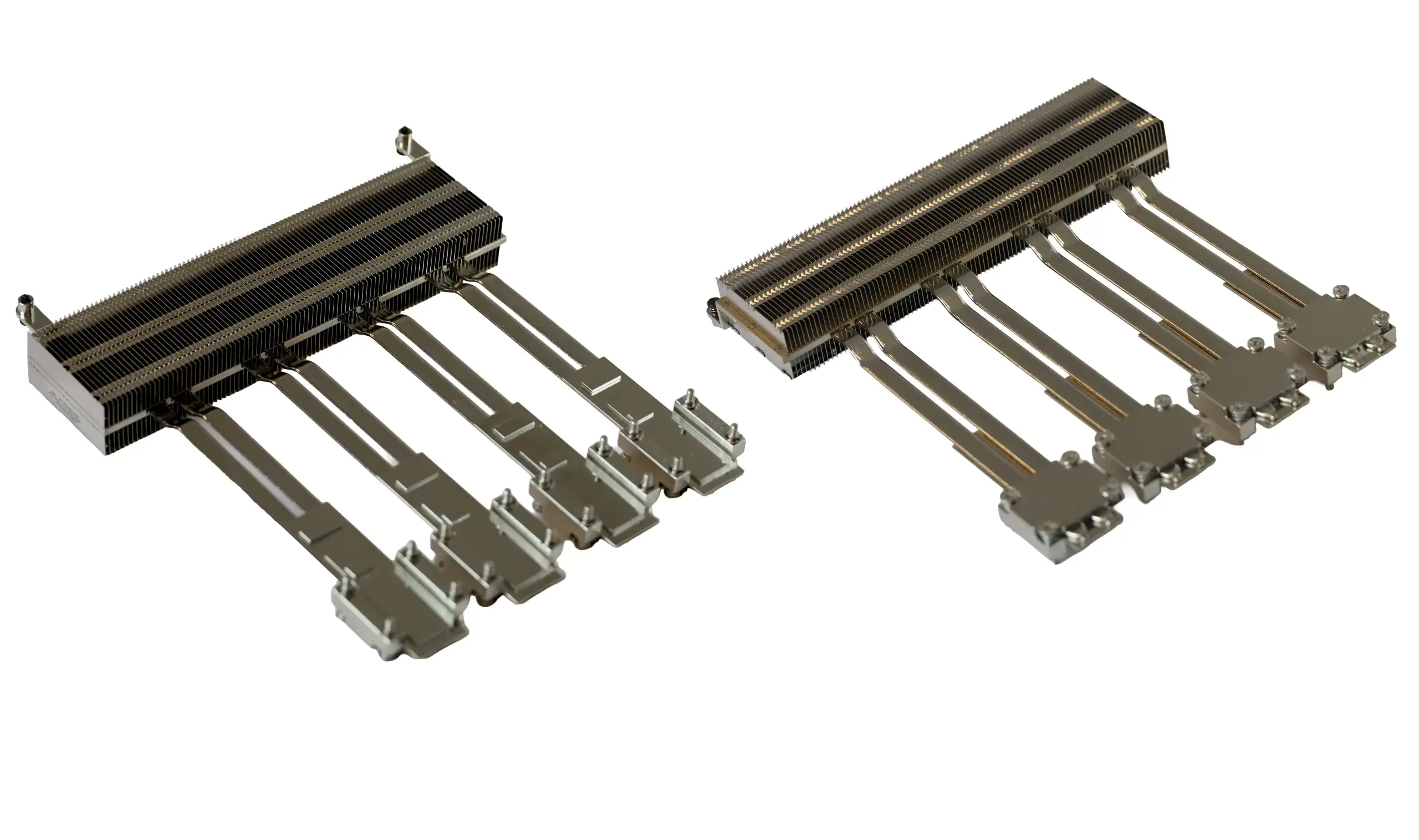

Multi-Heatpipe Cooling Assembly

Advanced heatpipe assembly for cooling of multiple pluggable optics modules in a row, each utilizing heatpipes to move heat from the module to the remote radiator.

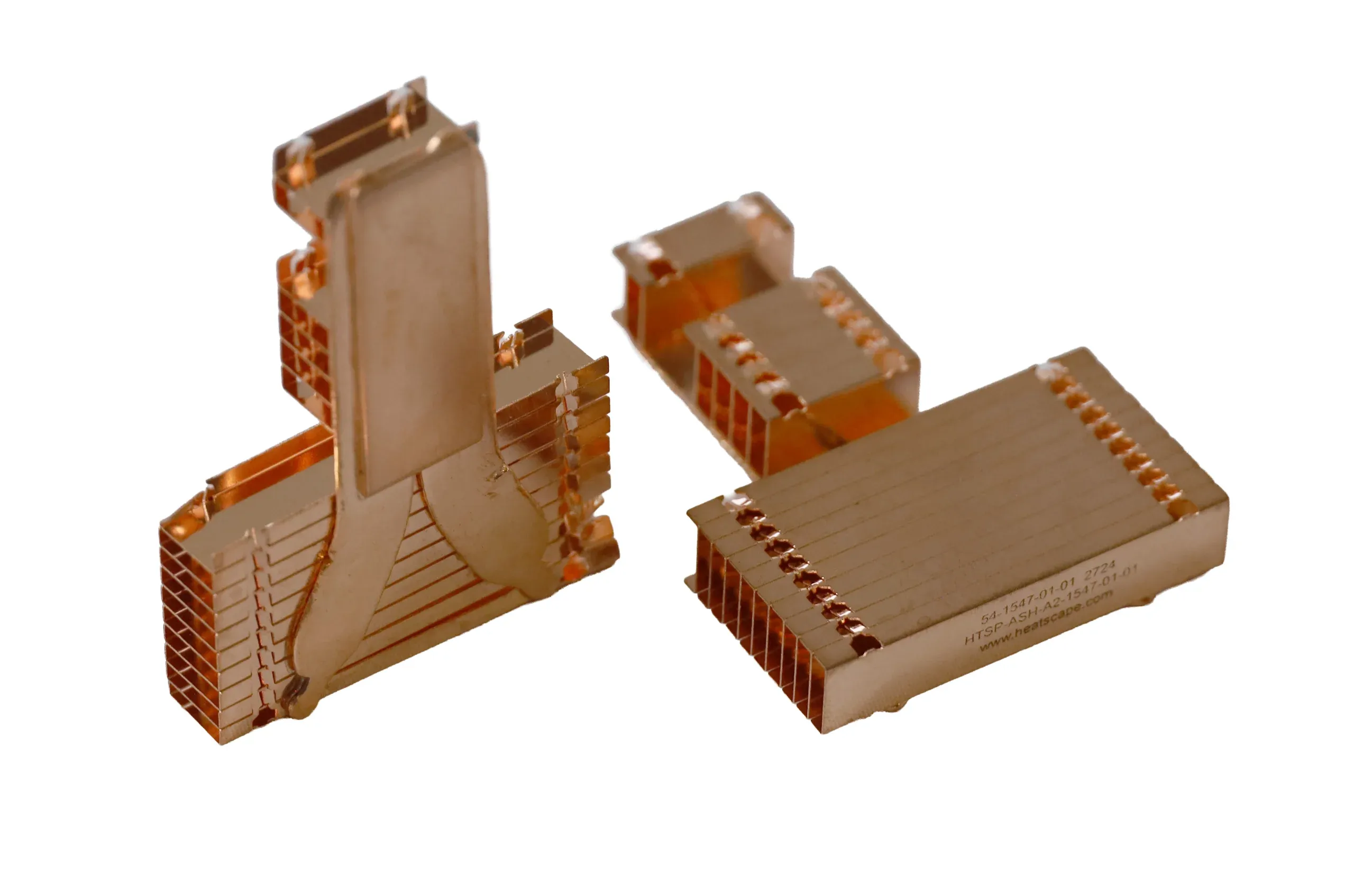

Custom Copper Cooler with Heatpipes

Custom copper cooler with heatpipes to enhance cooling for pluggable optical moduel.

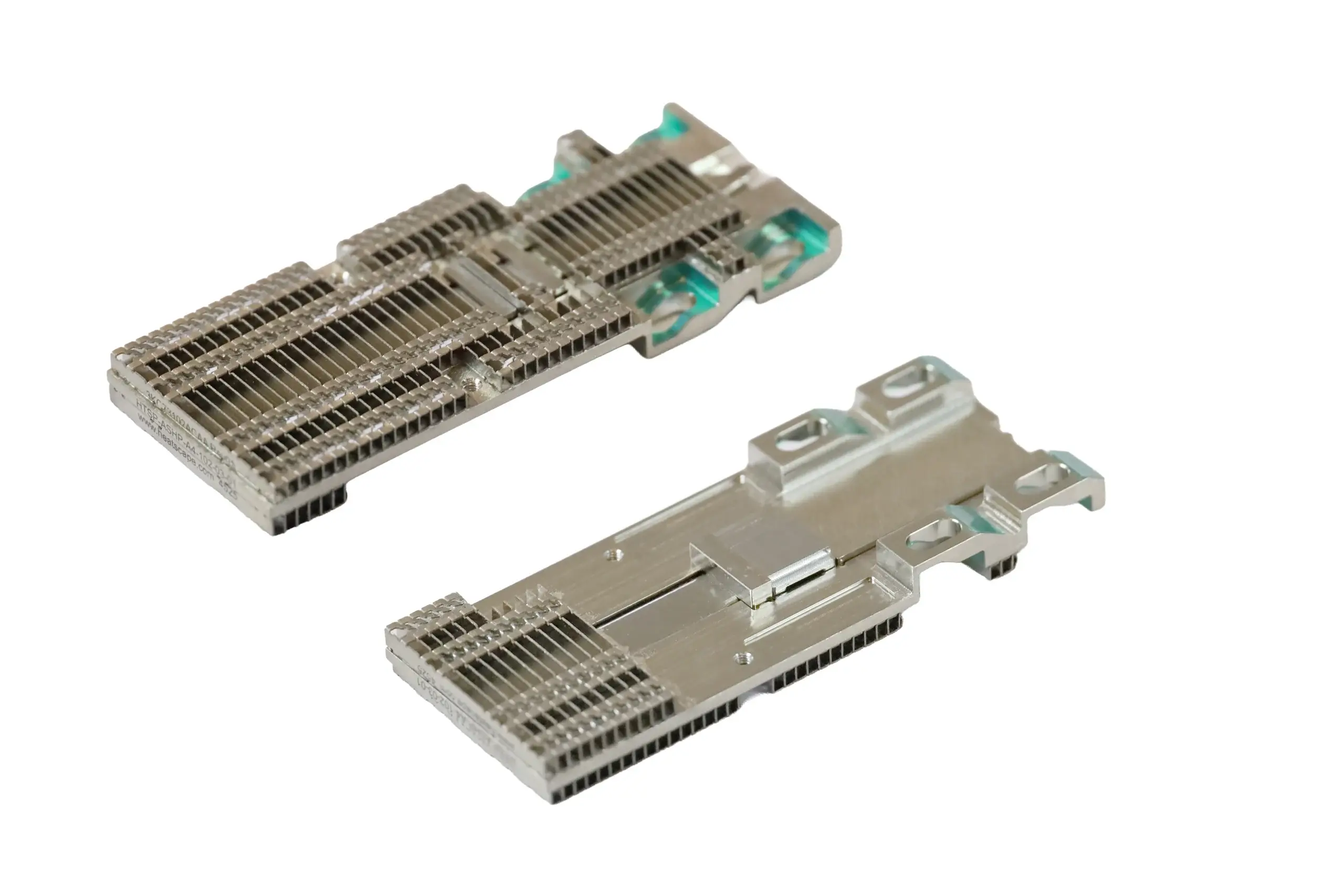

Custom Designed Cooler with Integrated Heatpipe

Custom designed cooler with integrated heatpipe, and low-friction material to facilitate smoother mounting.

Long Length, Thin Vapor Chamber Heatsink

Zipper Fin heatsink, with Thermal Grease Applied

Custom Heatpipe Assembly

Vapor Chamber Heatsink Solution

Unique PCIe Heatsink Solution

High-performance Heatpipe Assembly

Custom Parallel Flow Cold Plate and Manifold Assembly

Curved Thin Vapor Chamber

Dual Heatpipe Solution

Thin Form-factor Vapor Chamber

High-Volume Zipper Fin Heatsink

Multi-Heatpipe Cooling Assembly

Custom Copper Cooler with Heatpipes

Custom Designed Cooler with Integrated Heatpipe

Frequently Asked Questions

What is optical transceiver module cooling?

Optical transceiver module cooling refers to thermal solutions designed to remove heat from high-speed pluggable optical modules. These solutions maintain stable performance and prevent overheating in data center and telecom systems. Effective cooling is essential for signal integrity, system reliability, and consistent performance in high-bandwidth, high-density environments.

Why do optical transceivers require specialized cooling?

Optical transceivers require specialized cooling because they operate at high power densities within very compact form factors. As data rates increase, heat generation rises significantly. Standard heatsinks often cannot dissipate this heat effectively, making advanced thermal solutions necessary to maintain performance and prevent failure.

What cooling methods are used for optical transceiver modules?

Optical transceiver modules use cooling methods such as vapor chambers, heatpipe assemblies, zipper fin heatsinks, and liquid-cooled cold plates. The optimal method depends on power levels, airflow availability, and space constraints. These solutions are designed to efficiently manage heat in dense and high-performance systems.

How do heatpipes and vapor chambers improve transceiver cooling?

Heatpipes and vapor chambers improve transceiver cooling by transferring heat away from the module to larger heatsinks or remote cooling areas. This reduces localized hotspots and enhances thermal distribution. These technologies are especially effective in high-density systems where uniform cooling is critical.

Can optical transceiver cooling solutions support multiple modules at once?

Yes, optical transceiver cooling solutions can be designed to support multiple modules simultaneously. Shared heatsinks, heatpipe assemblies, or integrated cooling structures distribute heat evenly across ganged modules. This improves overall efficiency and simplifies system-level thermal management.

When is liquid cooling used for optical transceivers?

Liquid cooling is used when heat loads exceed the capabilities of air-based cooling systems. It is commonly applied in high-density and high-power environments where precise temperature control is required. Liquid cooling ensures consistent performance and reliability under heavy workloads.

What are the key challenges in cooling optical transceiver modules?

The key challenges include limited space, high heat density, and restricted airflow within compact systems. Designers must balance thermal performance, mechanical constraints, and reliability. Effective cooling solutions must address these challenges to ensure stable operation and long-term performance.

What is a heatsink calculator?

A heatsink calculator helps estimate thermal performance by analyzing heat dissipation, airflow, and material properties to determine optimal cooling solutions.
