Introduction
AI server racks represent one of the most thermally demanding environments in modern computing. As GPUs and AI accelerators increase in power consumption, thermal loads have risen to levels that traditional air-cooling methods can no longer handle efficiently. This has made advanced thermal architectures essential for maintaining system stability and performance.
Technologies such as liquid cold plates, vapor chambers, and heat pipes are now central to modern thermal management solutions. Each approach addresses a specific aspect of heat transfer, whether it is removing heat directly from components, spreading it across surfaces, or transporting it to cooling zones. Understanding how these technologies differ is critical for engineers and system architects designing scalable AI infrastructure.
What Are Liquid Cold Plates, Vapor Chambers, and Heat Pipes?
Liquid cold plates, vapor chambers, and heat pipes are thermal technologies designed to transfer heat away from high-power electronic components using conduction and phase-change mechanisms.
Liquid cold plates rely on circulating coolant to remove heat directly from components. Vapor chambers use phase-change heat transfer inside a sealed enclosure to spread heat uniformly. Heat pipes operate similarly but are optimized for transferring heat from one location to another rather than spreading it.
Each technology solves a different part of the thermal problem. Cold plates handle bulk heat removal, vapor chambers manage heat distribution, and heat pipes enable efficient thermal routing across a system.
Thermal Challenges in AI Server Racks

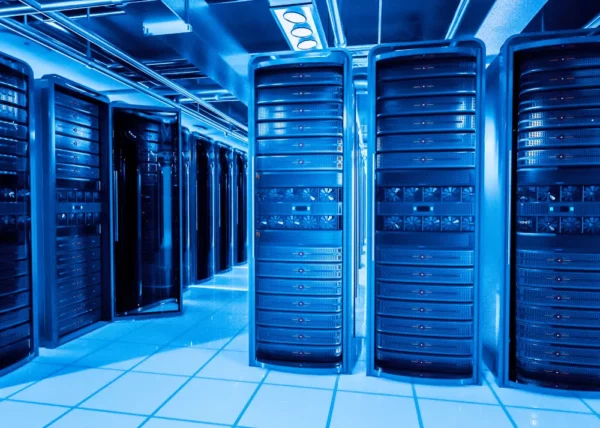

AI server racks operate under extreme thermal conditions due to high computational demand. Modern GPUs can exceed several hundred watts per unit, and when combined in dense rack configurations, total thermal loads can surpass tens of kilowatts.
These systems also face airflow limitations. As server density increases, airflow becomes less effective due to restricted pathways and recirculation of hot air. This reduces the efficiency of traditional cooling methods and increases the risk of thermal hotspots.
Reliability is another critical factor. AI workloads often run continuously, and even small thermal inefficiencies can lead to performance throttling or long-term hardware degradation. These challenges require thermal architectures that go beyond conventional air cooling.
Liquid Cold Plates: Direct Cooling for High-Power Systems
Liquid cold plates provide the most effective method of removing heat in high-power environments. They operate by circulating coolant through internal channels that are in direct contact with heat-generating components.
This approach enables efficient heat transfer because liquids have a much higher thermal capacity than air. As a result, cold plates can maintain stable temperatures even under sustained heavy workloads. This makes them ideal for AI servers, high-performance computing systems, and hyperscale data centers.
However, liquid cooling introduces additional complexity. Systems must include pumps, tubing, and leak management strategies. Despite this, the performance benefits often outweigh the added complexity in high-density computing environments.
Vapor Chambers: Managing Heat Distribution
Vapor chambers are designed to address one of the most critical thermal challenges in modern electronics: uneven heat distribution. Instead of focusing solely on removing heat, vapor chambers spread heat efficiently across a surface.
They operate using a sealed internal structure containing a working fluid. When heat is applied, the fluid evaporates and moves across the chamber before condensing in cooler areas. This process allows heat to be redistributed quickly and evenly.
This technology is particularly valuable for GPUs and CPUs, where localized hotspots can significantly impact performance. By reducing temperature gradients, vapor chambers improve overall thermal efficiency and enhance the effectiveness of secondary cooling systems.
Heat Pipes: Efficient Heat Transfer Across Distance
Heat pipes are passive thermal devices that transfer heat from one location to another using phase-change principles similar to vapor chambers. They are commonly used when heat needs to be moved away from a component to a remote heat sink or cooling zone.
Their primary advantage lies in their ability to transport heat efficiently without requiring external power. This makes them highly reliable and suitable for a wide range of applications.
However, heat pipes do not dissipate heat on their own. They must be paired with heat sinks or airflow systems to complete the cooling process. As a result, they are often used as part of hybrid thermal architectures rather than standalone solutions.
Comparison of Thermal Architectures
| Technology | Cooling Capacity | Primary Function | Complexity | Typical Applications |
| Liquid Cold Plates | Very High | Direct heat removal | High | AI servers, HPC, data centers |
| Vapor Chambers | Medium-High | Heat spreading | Medium | GPUs, CPUs, compact systems |
| Heat Pipes | Medium | Heat transfer | Low | Servers, telecom, hybrid cooling |
This comparison highlights that each technology serves a distinct role. The choice depends on how heat must be managed within the system rather than simply how much heat needs to be removed.
Industry Applications in AI and Data Center Cooling
AI server racks are the primary environment where these thermal technologies converge. Liquid cold plates are widely used for direct cooling of GPUs and processors, while vapor chambers improve heat distribution across chips. Heat pipes are often used to connect components to remote cooling structures.
In hyperscale data centers, liquid cooling is becoming increasingly common due to its ability to handle high thermal loads efficiently. This shift is driven by the growing demand for AI computing and the need to reduce energy consumption associated with traditional air cooling.
Telecommunications and edge computing systems also benefit from these technologies. In these environments, compact design and limited airflow make vapor chambers and heat pipes particularly valuable.
Best Practices for Selecting Thermal Architecture
Selecting the right thermal solution requires a system-level perspective. Engineers must first evaluate the power density of the system. Low-power systems may function adequately with air cooling and heat pipes, while high-power AI systems typically require liquid cooling.
It is also important to consider scalability. Systems designed for future expansion should incorporate thermal solutions that can handle increased loads without requiring a complete redesign.
Integration is another key factor. Thermal solutions must fit within mechanical constraints while maintaining efficient airflow or fluid circulation. Poor integration can negate the benefits of even the most advanced cooling technologies.
Finally, hybrid architectures often provide the best results. Combining liquid cold plates with vapor chambers and heat pipes allows engineers to address multiple thermal challenges simultaneously.
