Heatscape engineers use the latest CFD thermal analysis tools to accurately simulate the thermal behavior of a particular device, board, or chassis. Based on the simulation data, verified through extensive testing, an efficient thermal solution can be designed for each application. Thermal modeling can be performed at the component, board, heatsink, and system level to provide insight into the thermal characteristics of the project.

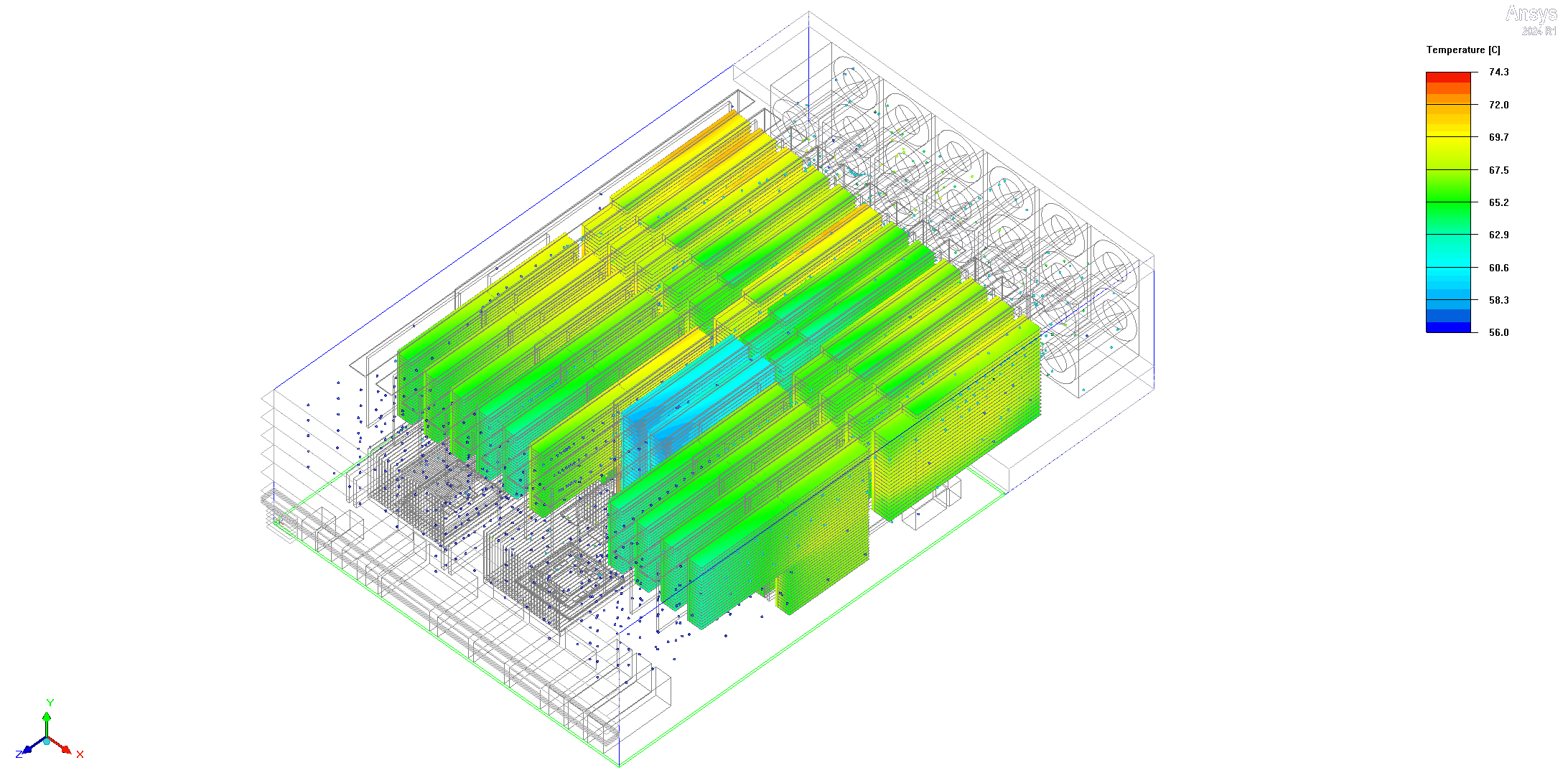

Supermicro Server - System Level Analysis

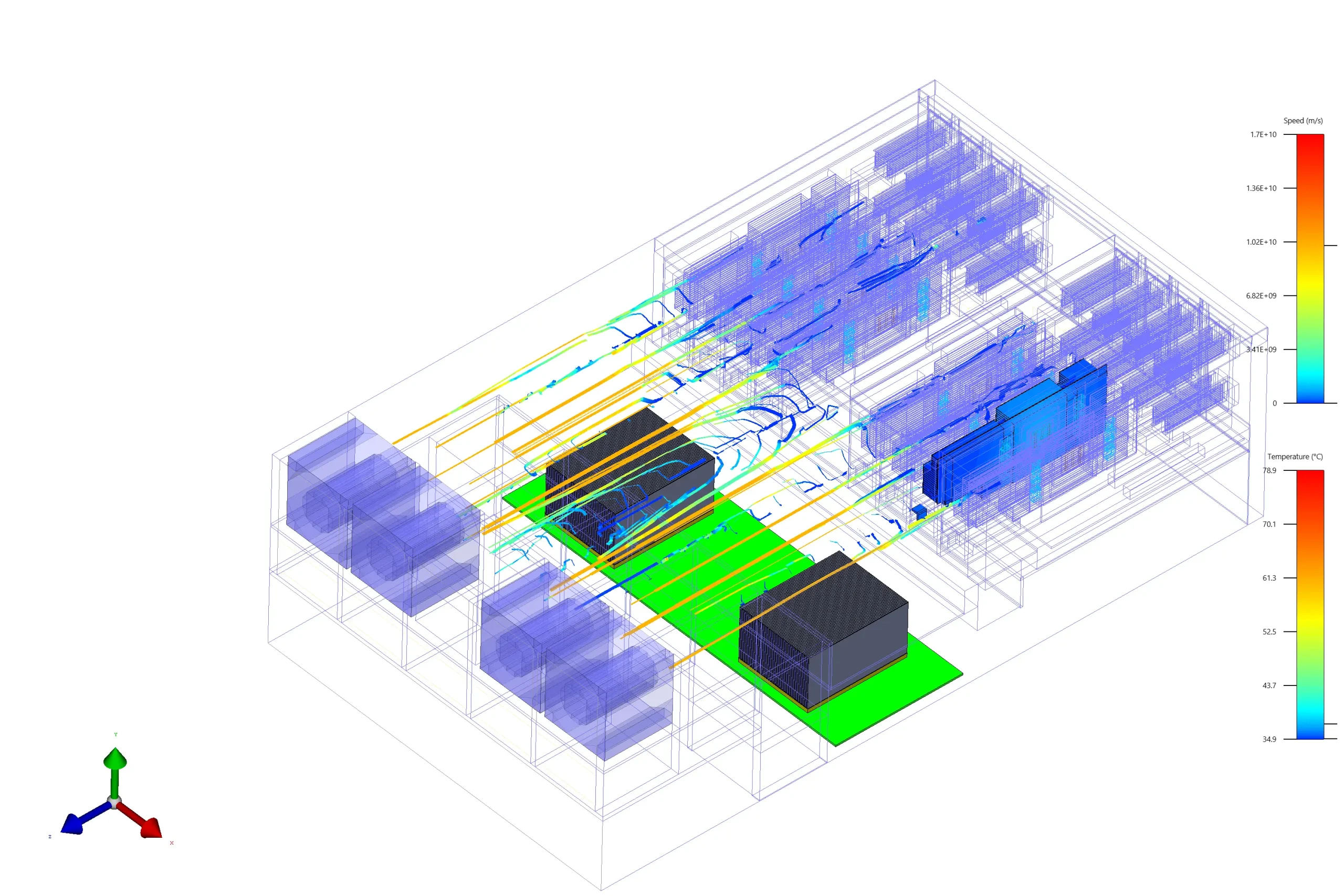

Flotherm System Analysis

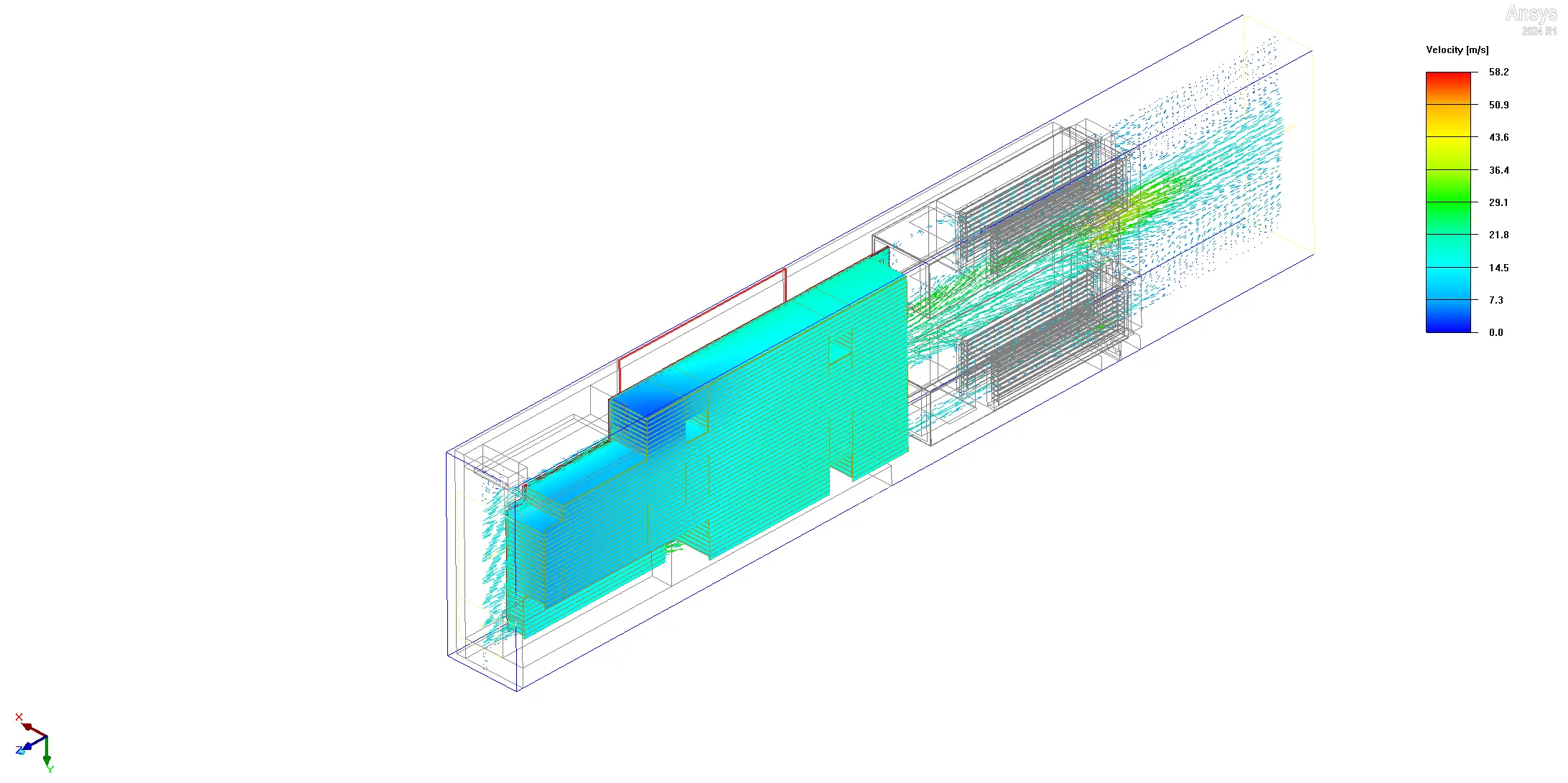

Pluggable Card - End to End Design and Analysis

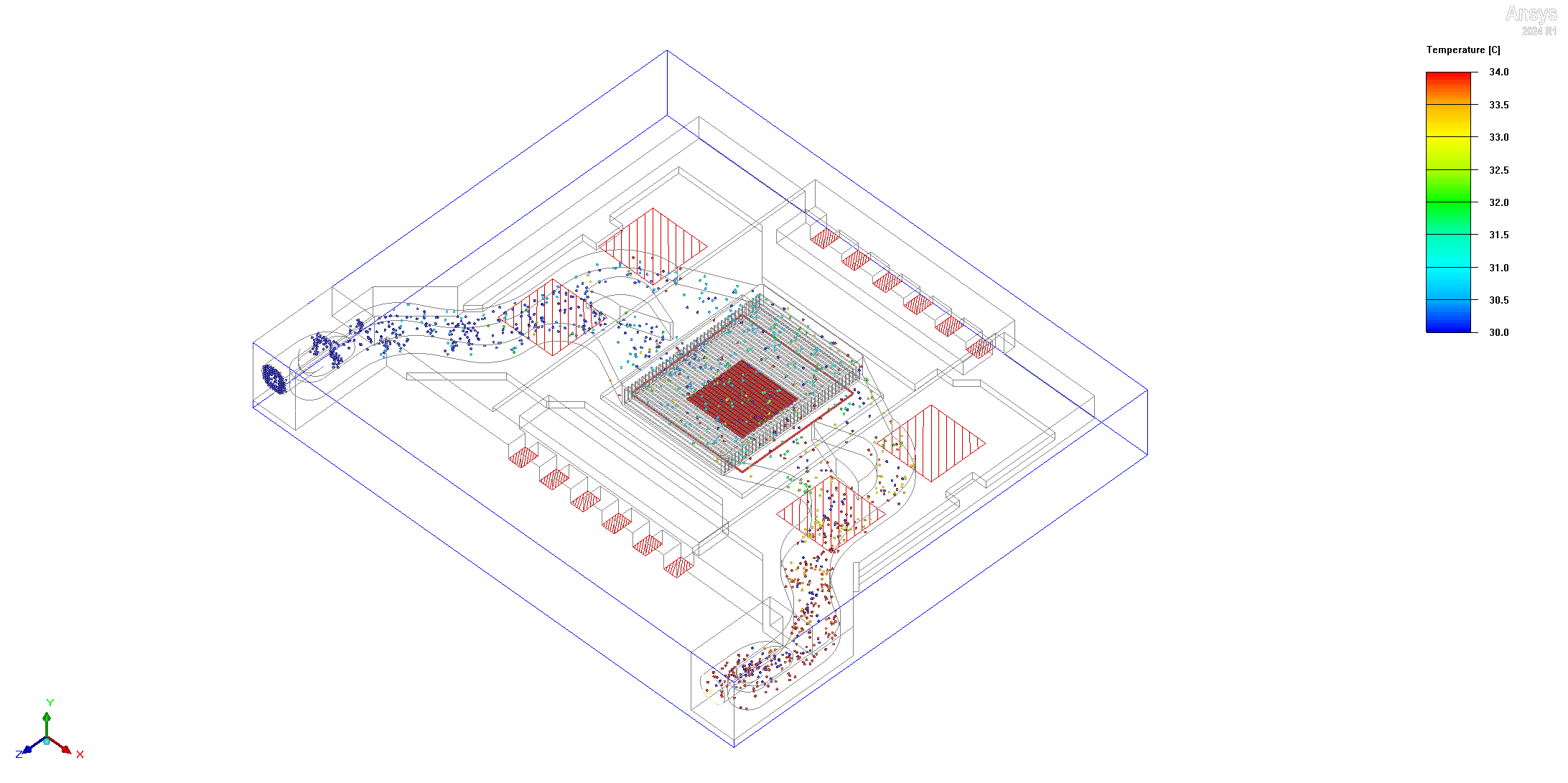

Friction Stir Welded Cold Plate

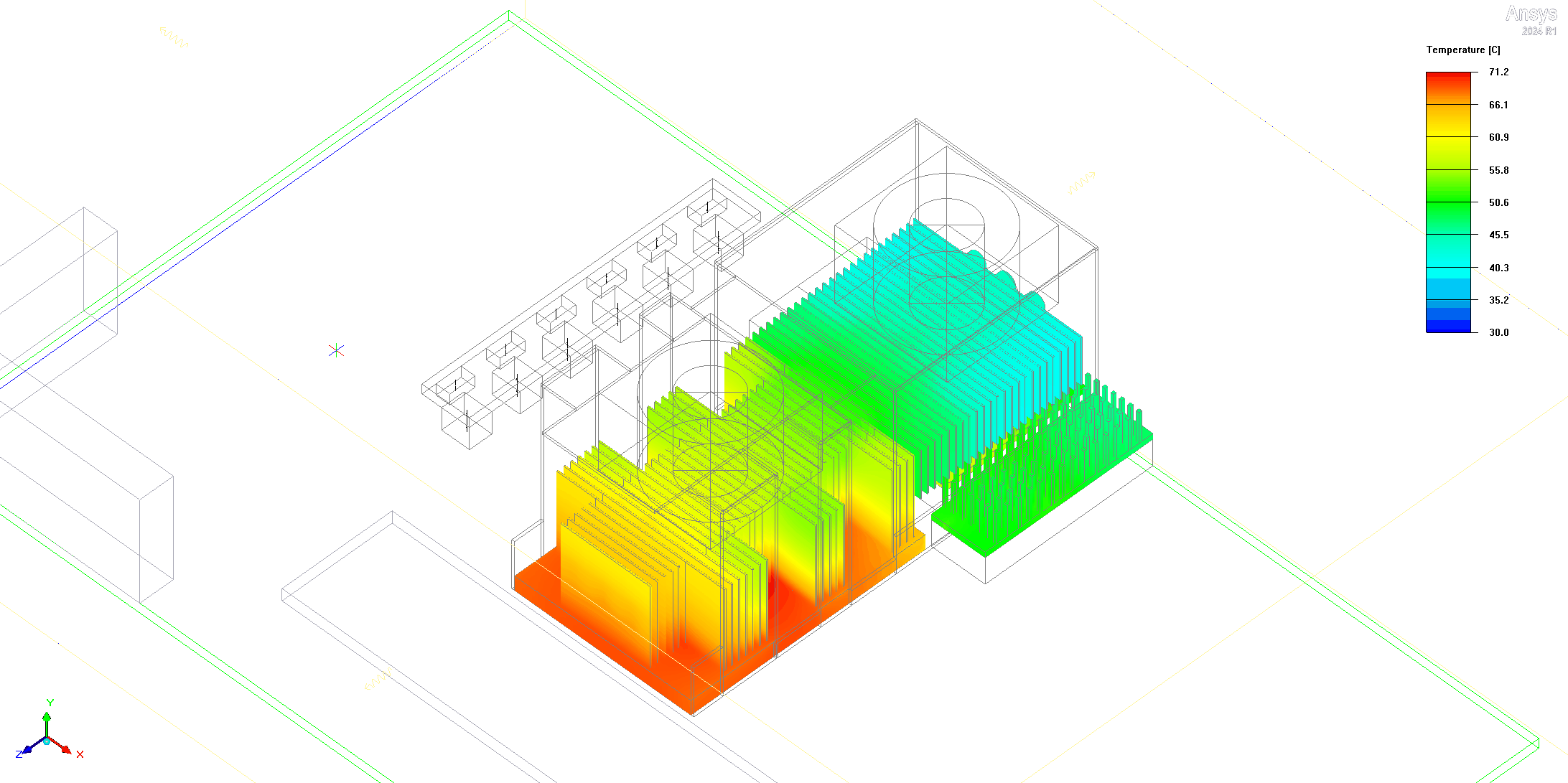

Active Cooled Solution - Fan Integrated Into Vapor Chamber Heatsink

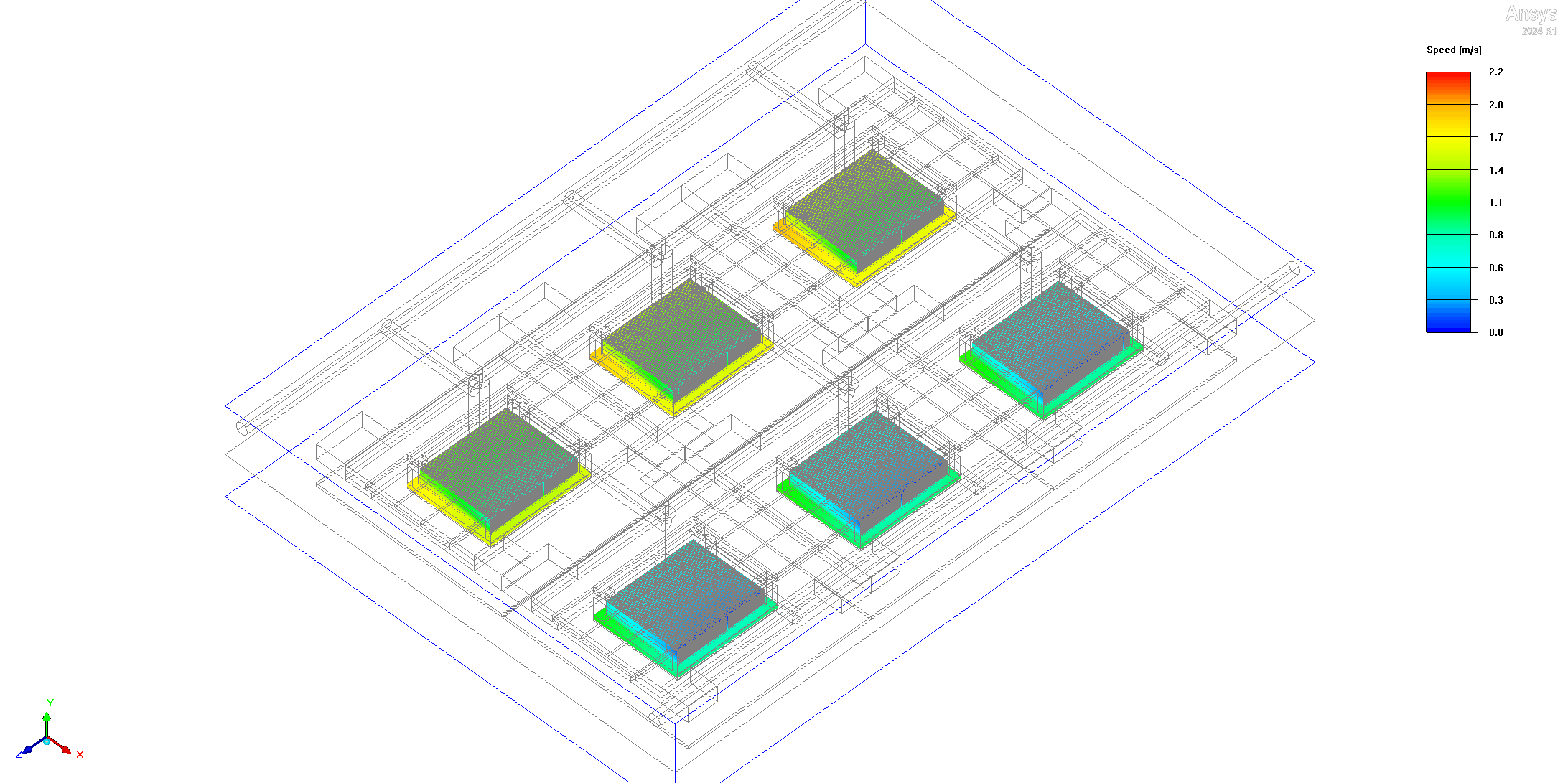

Combination Parallel and Series flow - FPGA Cooling

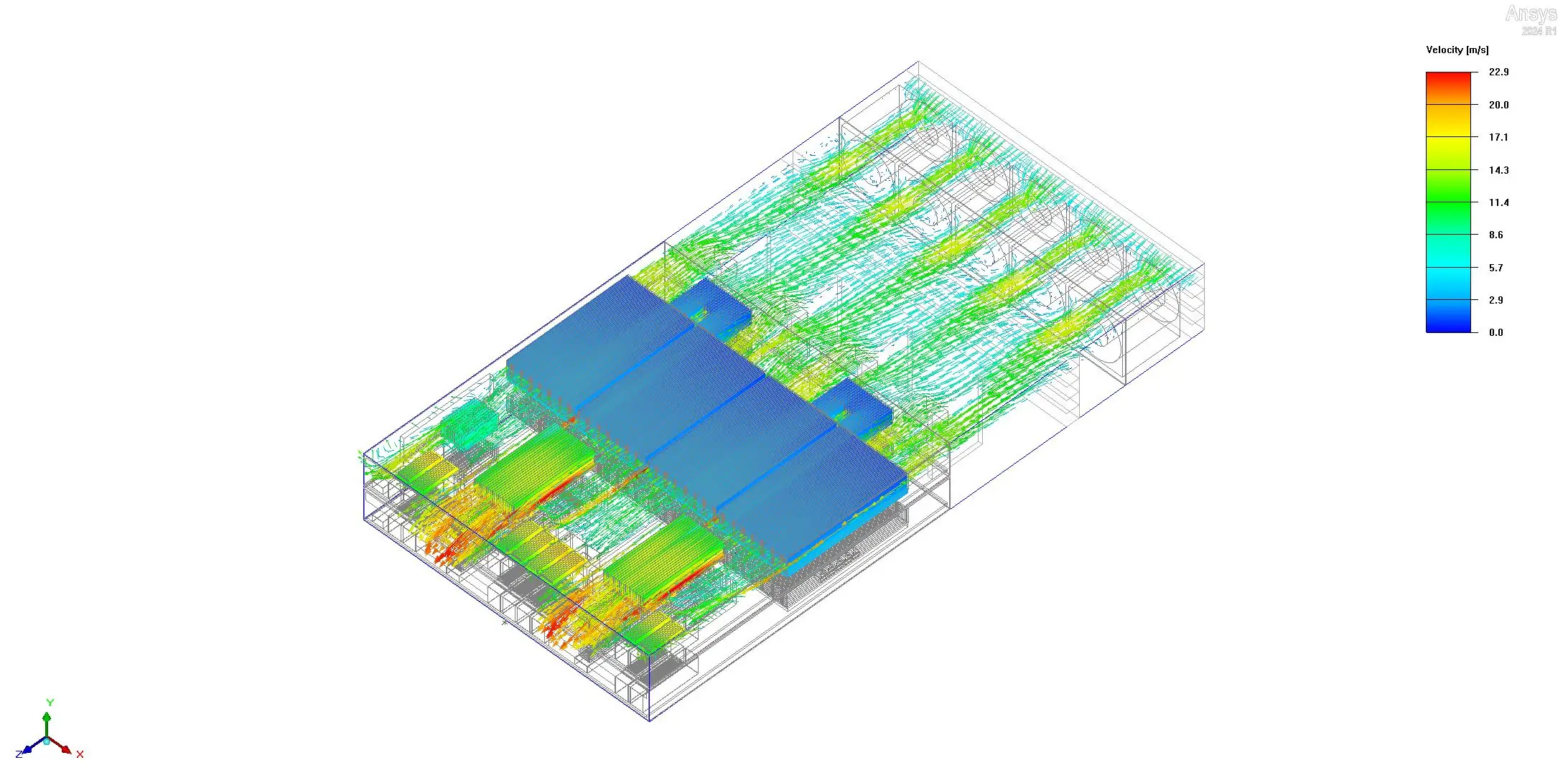

1U Multi-Card Analysis - Complete System Model
Computational Fluid Dynamics, or CFD, is a thermal simulation method used to study airflow, fluid flow, heat transfer, pressure drop, and temperature distribution inside electronic systems. For high-power electronics, CFD helps engineering teams understand how heat moves through a component, board, chassis, heatsink, cold plate, or complete system before final hardware is built.
At Heatscape, CFD is used to evaluate and optimize thermal solutions for applications such as high-performance servers, AI hardware, FPGA cooling, pluggable cards, liquid-cooled cold plates, vapor chamber heatsinks, and compact electronic enclosures. By combining simulation with thermal design experience and physical testing, Heatscape helps customers reduce thermal risk, improve cooling efficiency, and move from concept to production with greater confidence.
CFD is a digital simulation process that models how air or liquid moves through a system and how heat transfers from hot components to surrounding cooling structures. In electronics cooling, CFD can help answer questions such as:
Instead of relying only on physical prototypes, CFD allows engineers to compare cooling strategies early. This may include testing different heatsink fin designs, fan layouts, vent openings, ducting paths, vapor chamber configurations, cold plate channels, or system-level airflow paths.
CFD is most valuable when thermal behavior is difficult to predict with hand calculations alone. A simple heatsink calculator may help with early estimates, but complex systems often require simulation because airflow paths, component layout, boundary conditions, and mechanical constraints can strongly affect real-world performance.
You should consider CFD when:
Tip: Use CFD early in the design cycle. It is much easier to adjust component layout, airflow direction, fin geometry, or cold plate channel design before hardware is finalized.
Accurate CFD results depend on accurate design inputs. The more complete the thermal and mechanical data, the more useful the simulation becomes. The table below outlines the common information needed before starting a CFD thermal analysis project.
| Design Input | What to Provide | Why It Matters |
| Mechanical Geometry | CAD files, enclosure dimensions, board layout, component placement, heatsink geometry, fan locations, vent openings, ducts, and mechanical restrictions. STEP files are commonly used. | Defines the physical space where airflow, fluid flow, and heat transfer occur. Geometry accuracy affects hotspot prediction and airflow behavior. |
| Power Map and Heat Sources | Power dissipation values for CPUs, GPUs, FPGAs, ASICs, power modules, optical modules, memory, VRMs, and other heat-generating components. | Helps identify where heat is generated and how much cooling capacity is required for each component. |
| Material Properties | Materials used for heatsinks, cold plates, PCBs, enclosures, thermal interface materials, plastics, aluminum, copper, and other structural parts. | Material conductivity affects how heat spreads through the system before it is removed by air or liquid cooling. |
| Airflow Conditions | Fan curves, airflow direction, inlet temperature, outlet restrictions, pressure conditions, altitude requirements, and vent details. | Allows the simulation to reflect real airflow behavior instead of relying on ideal fan ratings. |
| Liquid Cooling Conditions | Coolant type, flow rate, inlet temperature, channel design, manifold layout, pressure drop targets, and coolant temperature rise limits. | Essential for evaluating cold plate performance, coolant distribution, pressure loss, and thermal efficiency. |
| Thermal Limits | Maximum allowable junction temperature, case temperature, board temperature, coolant temperature, or system operating temperature. | Provides clear pass/fail criteria for the simulation and helps determine whether the design meets performance requirements. |
| Operating Scenarios | Peak load, typical load, ambient temperature range, orientation, altitude, redundancy requirements, airflow blockage risks, and expected use conditions. | Ensures the CFD model reflects real operating conditions, not only ideal lab conditions. |
| Design Goals | Target temperature reduction, pressure drop limit, noise constraints, form factor limits, weight targets, cost goals, or manufacturing requirements. | Helps guide optimization so the final solution balances thermal performance, manufacturability, and system constraints. |
Tip: If complete data is not available at the beginning of the project, CFD can still start with documented assumptions. These assumptions should be updated as CAD, power data, airflow data, or test results become available.
The process starts with a review of the product’s thermal goals, power levels, size constraints, airflow or liquid cooling requirements, target temperatures, and system architecture. This helps define the right simulation scope.
The engineering team prepares the geometry for simulation. This may involve simplifying CAD files, removing non-thermal details, defining materials, assigning power sources, and preparing the fluid domain.
Boundary conditions are applied based on the real operating environment. These may include inlet temperature, fan curves, airflow rates, coolant flow rates, pressure limits, heat loads, and ambient conditions.
The CFD model is solved to visualize airflow, fluid flow, temperature distribution, velocity, pressure drop, and heat transfer. This helps identify hotspots, stagnant airflow zones, high-pressure regions, or inefficient thermal paths.
Based on simulation results, the design can be refined. This may include changing fin height, fin pitch, base thickness, vapor chamber size, ducting, fan placement, cold plate channel geometry, manifold layout, or material selection.
CFD is most powerful when paired with physical testing. Simulation results can be compared against prototype or lab data to refine assumptions and improve accuracy. Heatscape’s existing page notes that simulation data is verified through extensive testing, supporting a simulation-plus-validation approach.
CFD can evaluate airflow through servers, chassis, cards, ducts, heatsinks, fans, and power modules. This is useful for AI servers, edge systems, telecom hardware, and high-density computing platforms.
CFD helps optimize heatsink base thickness, fin spacing, fin height, fin count, airflow direction, and pressure drop. It can be used for extruded heatsinks, skived heatsinks, zipper fin heatsinks, fansinks, and custom heatsinks.
For high heat flux components, CFD can help evaluate how heat spreads from a concentrated source into a larger cooling surface. This is useful for GPUs, FPGAs, AI accelerators, optical modules, and compact high-power electronics.
CFD is especially useful for liquid cooling because it can evaluate internal flow channels, coolant distribution, pressure drop, temperature rise, and heat transfer performance. Heatscape’s current page includes cold plate and manifold examples, including friction stir welded cold plates and combined parallel/series FPGA cooling.
CFD can help evaluate how component placement, PCB conduction, local airflow, and neighboring heat sources affect board temperature. This is useful when small layout changes may significantly improve cooling performance.
For densely packed systems, CFD can evaluate airflow between cards, under components, through heatsinks, and across both top and bottom card surfaces. Heatscape’s current page references pluggable card and 1U multi-card analysis examples.
If your electronic system is facing high power density, airflow restrictions, liquid cooling challenges, or uncertain thermal performance, Heatscape can help evaluate the design before production. Our engineering team supports CFD simulation, custom heatsink design, vapor chamber solutions, cold plate design, system-level thermal analysis, prototyping, and testing.
CFD is used to simulate airflow, liquid flow, heat transfer, temperature distribution, and pressure drop in electronic systems. It helps engineers predict whether a cooling design can keep components within safe operating temperatures before physical prototypes are built.
No. CFD can be used for both air cooling and liquid cooling. It can evaluate fans, ducts, vents, heatsinks, cold plates, manifolds, coolant channels, and complete system airflow or fluid flow paths.
A heatsink calculator is useful for early thermal estimates. CFD is better when the design includes complex airflow, multiple heat sources, tight mechanical spaces, fans, ducts, enclosures, vapor chambers, or liquid cooling channels.
Useful files include CAD geometry, board layout, component power data, material information, fan curves, flow rate requirements, coolant details, and target temperature limits. The exact requirements depend on the simulation scope.
Yes. CFD helps identify design issues before physical prototypes are built, allowing engineers to compare and refine cooling concepts digitally. This can reduce redesign cycles, shorten development time, and improve the quality of the first prototype.
Yes. CFD can evaluate coolant flow paths, channel geometry, heat transfer performance, pressure drop, and temperature rise in cold plates and liquid cooling systems. This helps optimize liquid cooling designs for performance and manufacturability.
CFD results are highly accurate when based on proper modeling inputs and validated with physical testing. While simulations provide strong predictive insights, they are typically combined with real-world testing for confirmation. This combined approach ensures reliable thermal performance and helps refine designs before final production.
A heatsink calculator helps estimate thermal performance by analyzing heat dissipation, airflow, and material properties to determine optimal cooling solutions.
