Heatscape design and manufacturing teams utilize the latest in 3D CAD design tools such as Soldworks, ProE, and AutoCAD to accurately and realistically design thermal solutions, and to insure its fit and function within customer applications. Thermal designs can come directly from the customer (build to print) where Heatscape engineers can do a thorough and detailed DFM review (Design-For-Manufacturing) to make sure that thermal solutions are manufacturable and within appropriate tolerances.

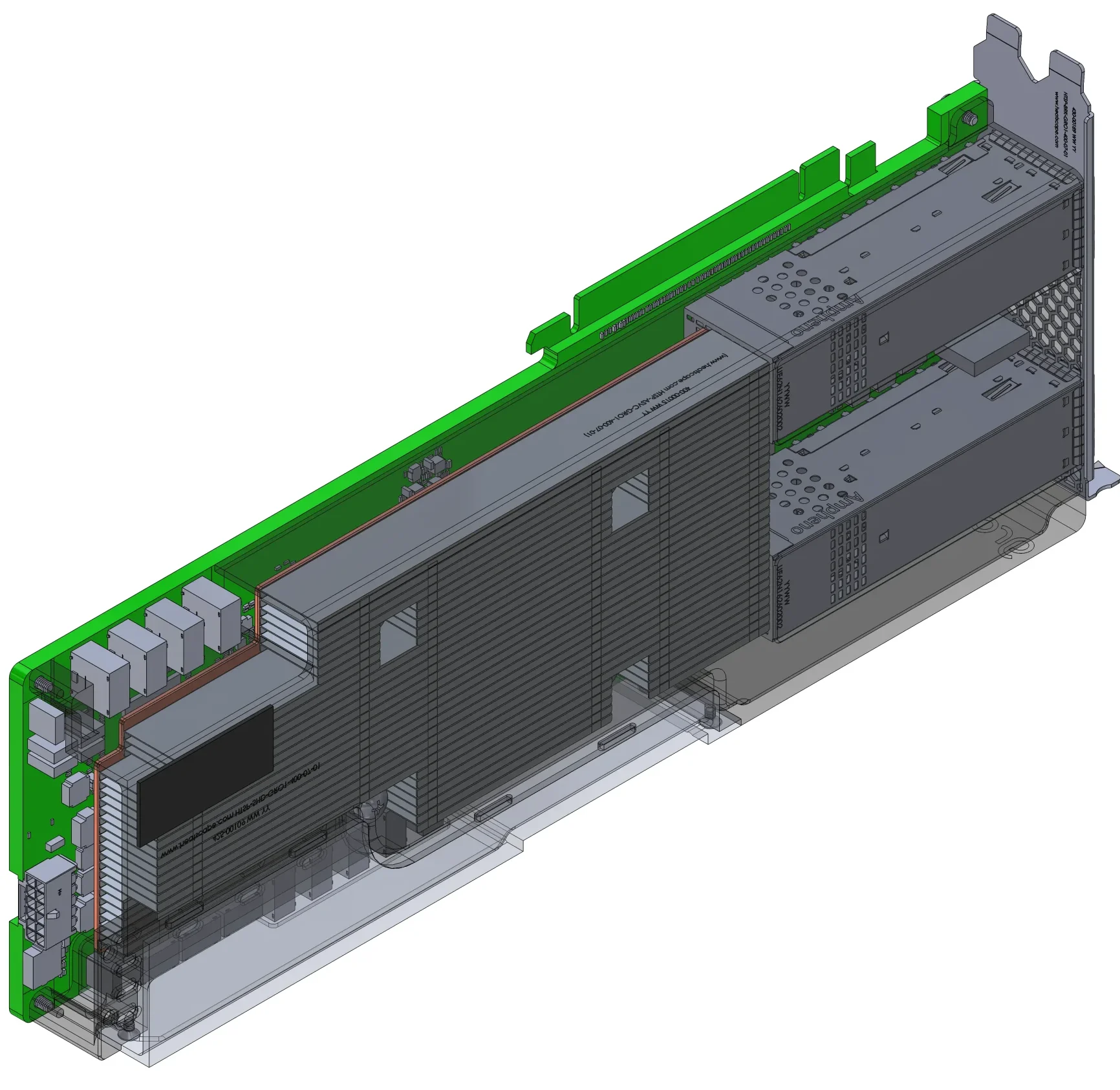

Complete Thermal and Mechanical Solution - Pluggable Card

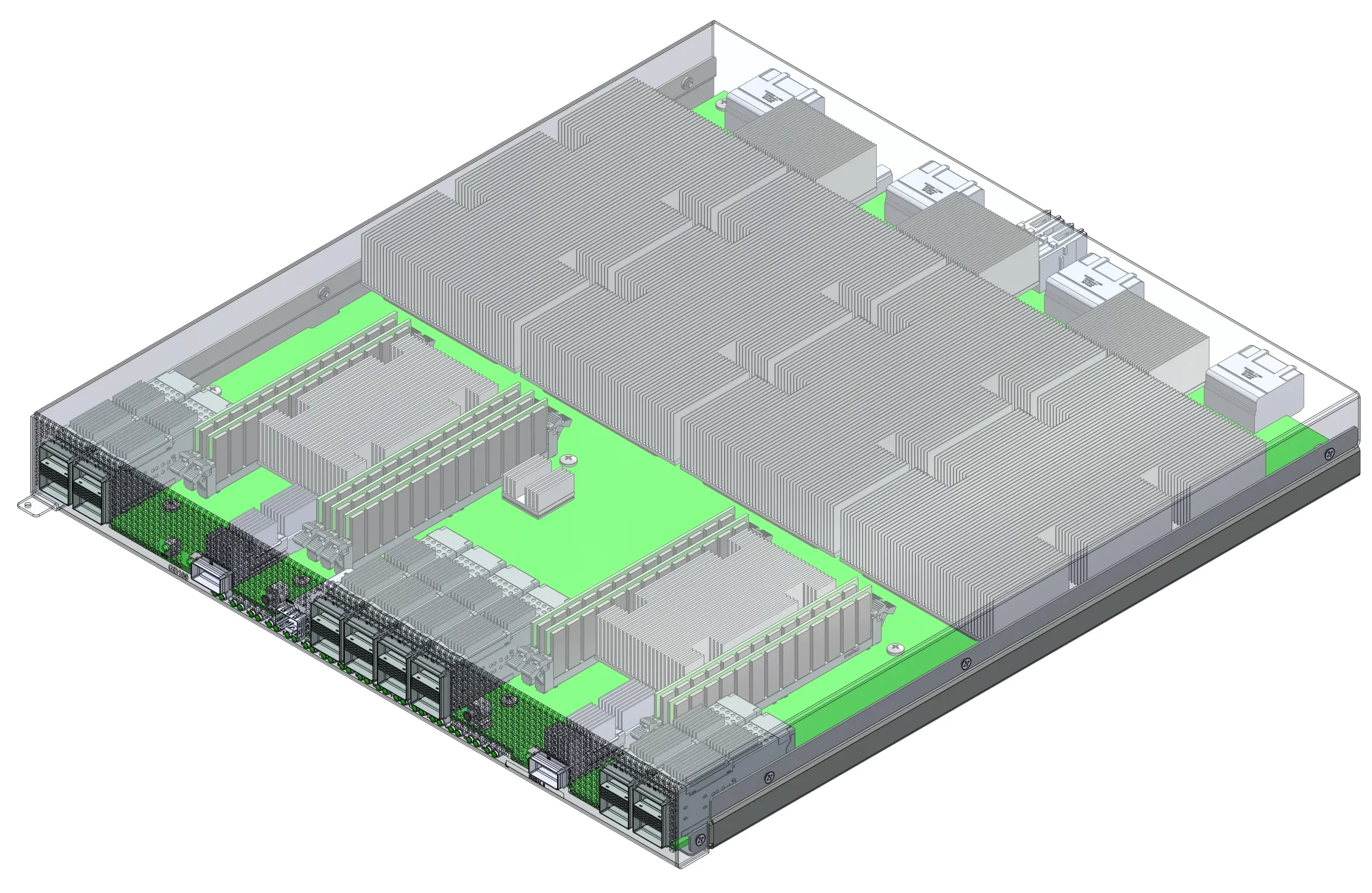

Mutli-Heatsink Solution - 1U Server

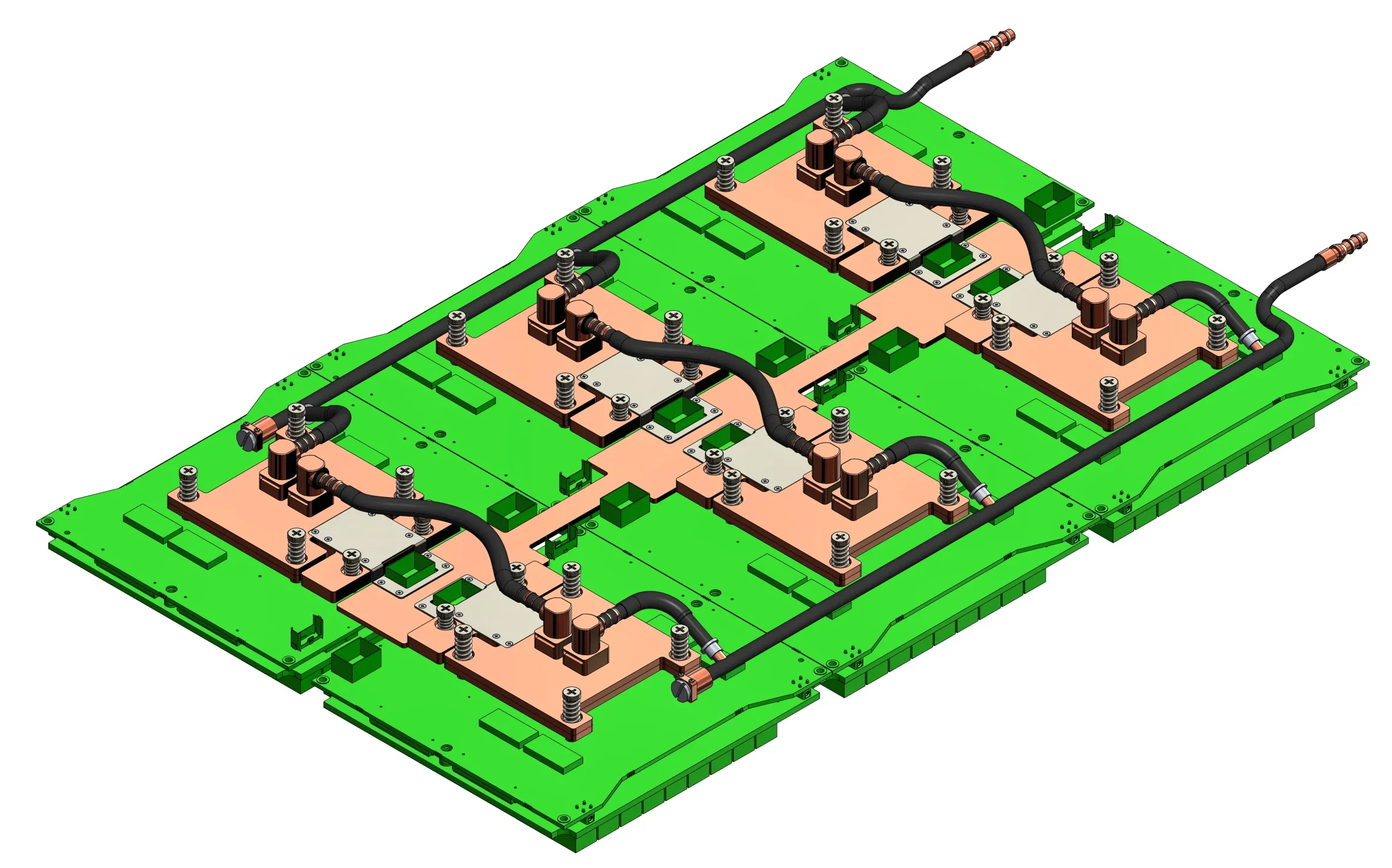

Combination Parllel and Series Flow Liquid Cooled Loop

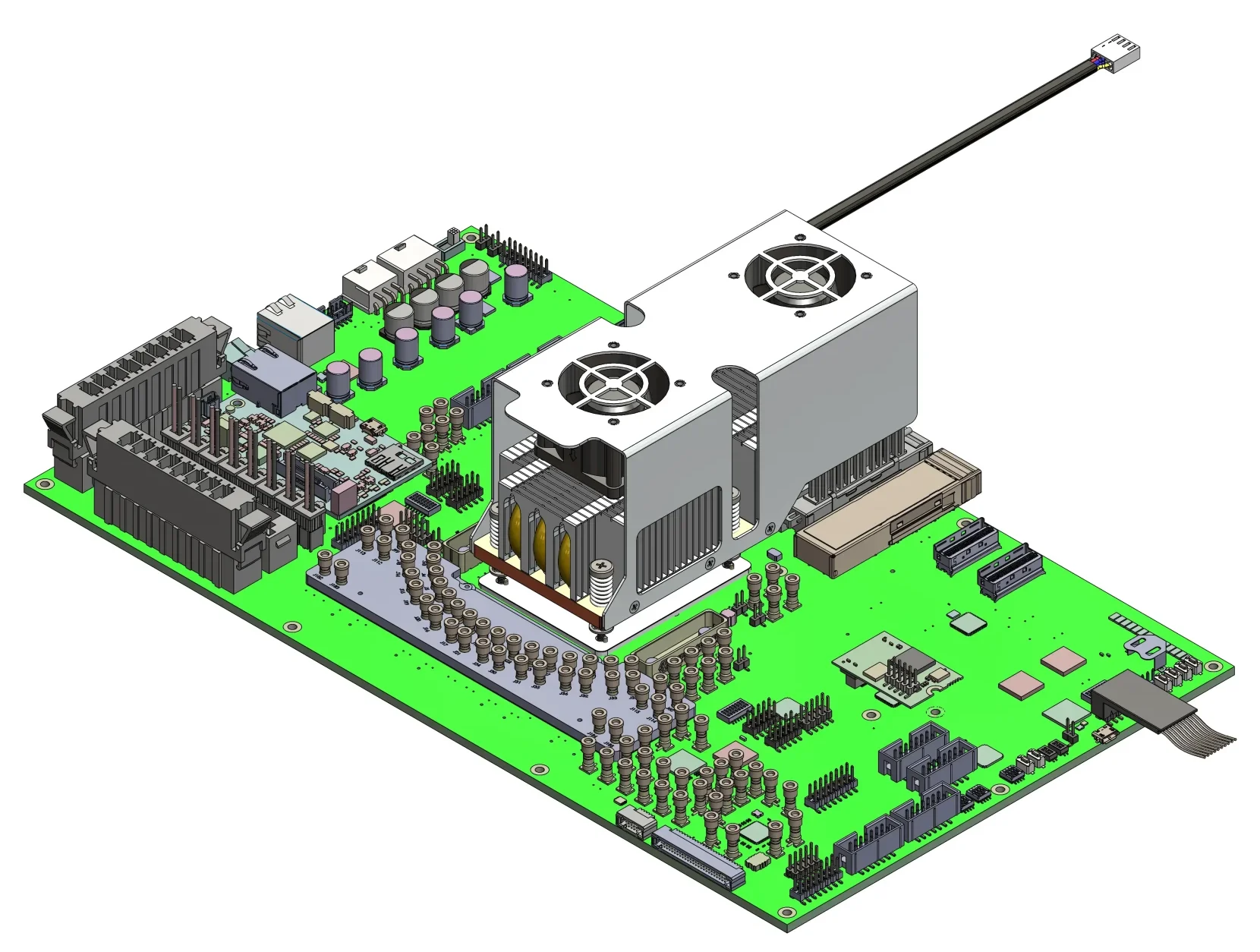

End to End Mechanical and Thermal Design - Development Kits

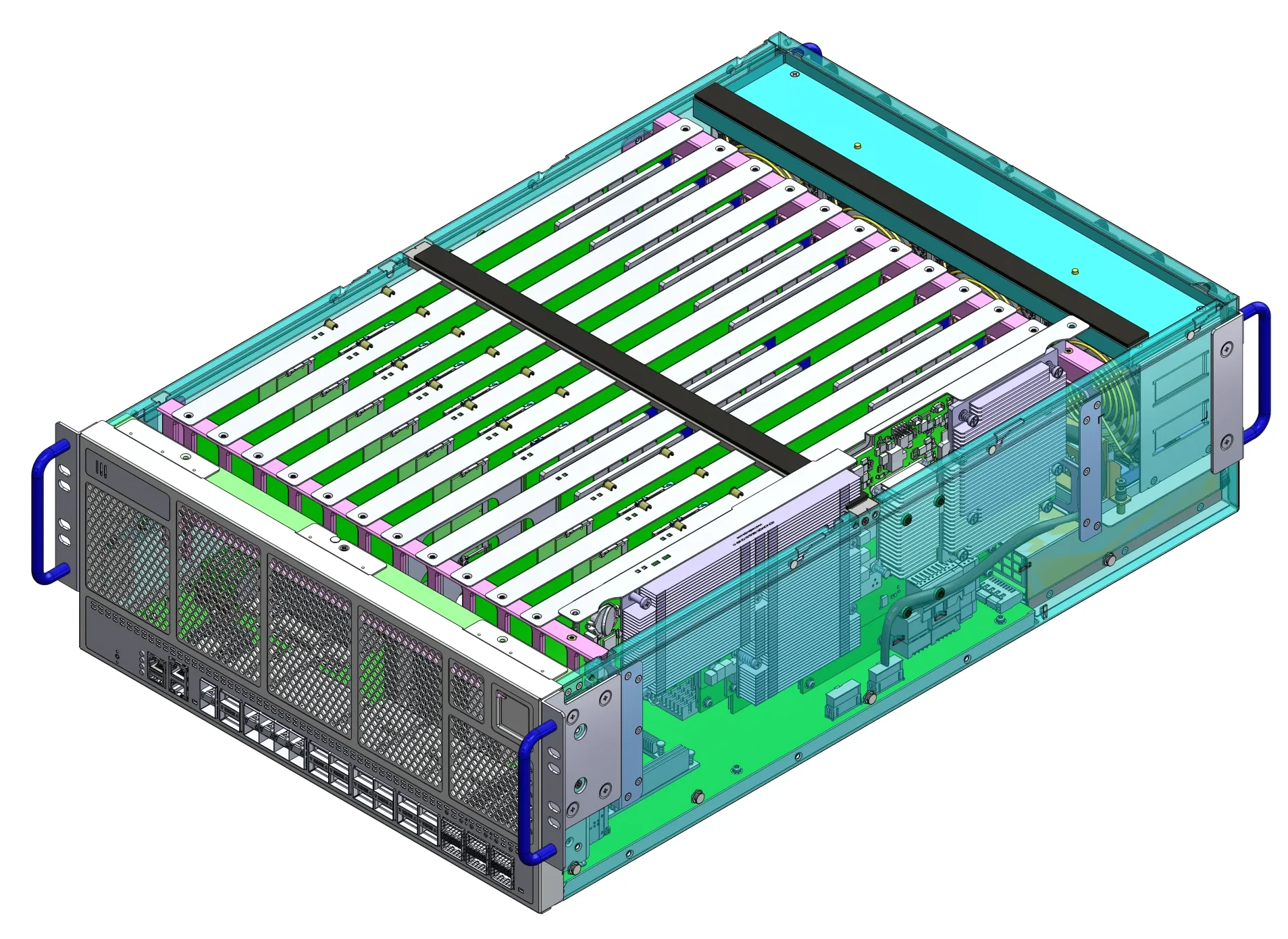

4U System - Complete Mechanical Design and Thermal Model
Heatscape provides custom mechanical design and DFM support for thermal solutions that need to fit, function, and scale in real-world electronic systems. Using 3D CAD tools such as SolidWorks, ProE, and AutoCAD, Heatscape designs thermal and mechanical components for proper integration, airflow control, structural support, and manufacturability. The current page already highlights support for thermal solution design, build-to-print reviews, air plenums, shrouds, brackets, bolster plates, backing plates, and mounting hardware.
Custom mechanical design focuses on creating the physical parts and assemblies needed to support custom heatsinks, cold plates, airflow guides, brackets, backing plates, and other thermal solutions inside a customer’s system. This may include heatsink mounting structures, brackets, air shrouds, backing plates, airflow ducts, liquid cooling manifolds, cold plate interfaces, and enclosure-level integration features.
DFM, or Design for Manufacturing, reviews the design to make sure it can be manufactured consistently, cost-effectively, and within the required tolerances. In thermal design, DFM is especially important because small changes in flatness, mounting pressure, fin geometry, material selection, or assembly method can affect both performance and production yield.
Mechanical design and DFM should be used when a thermal solution needs more than a standard off-the-shelf heatsink or simple mounting method.
Use this service when:
| Situation | Why It Matters |
| The thermal solution must fit into a tight system layout | Helps avoid interference with PCBs, connectors, cables, chassis walls, and nearby components. |
| The design includes air plenums, shrouds, brackets, or backing plates | These parts affect airflow, mounting stability, and assembly reliability. |
| A customer already has a build-to-print design | DFM review can identify tolerance, material, machining, or assembly risks before production. |
| The product is moving from prototype to production | Ensures the design can be manufactured repeatedly and efficiently. |
| The assembly includes liquid cooling components | Mechanical design helps manage cold plate interfaces, tubing paths, manifolds, sealing, and serviceability. |
| The design needs both thermal and structural performance | Helps balance heat transfer, mounting force, vibration resistance, and manufacturability. |
Tip: Apply DFM early. It is easier to adjust geometry, tolerances, material, and assembly methods before tooling, prototyping, or high-volume production begins.
Accurate mechanical design depends on clear technical inputs. These details help define the design envelope, thermal requirements, assembly constraints, and production expectations.
| Design Input | What to Provide | Why It Matters |
| System CAD or Layout | STEP files, PCB outline, enclosure model, card layout, connector locations, and keep-out zones. | Confirms fit, clearance, and mechanical integration. |
| Thermal Requirements | Heat source locations, power levels, target temperatures, airflow direction, or liquid cooling needs. | Ensures the mechanical design supports the required cooling strategy. |
| Mounting Requirements | Hole locations, fastener type, torque targets, spring clips, backing plates, or bolster plate needs. | Controls contact pressure and keeps the thermal interface stable. |
| Material Requirements | Preferred materials such as aluminum, copper, stainless steel, plastics, or plating requirements. | Affects weight, strength, heat transfer, cost, and manufacturability. |
| Tolerance Requirements | Flatness, parallelism, hole position, interface surface requirements, and critical dimensions. | Helps prevent fit issues and thermal interface problems. |
| Manufacturing Volume | Prototype, pilot build, or high-volume production expectations. | Guides the best manufacturing process and cost structure. |
| Assembly Constraints | Installation sequence, tool access, field service needs, cable routing, tubing paths, and safety requirements. | Reduces assembly problems and improves serviceability. |
| Compliance or Environmental Needs | Vibration, shock, operating temperature, corrosion resistance, or industry-specific requirements. | Helps ensure the design can survive the final operating environment. |
The process begins with a review of the system layout, thermal goals, mechanical envelope, mounting requirements, and production expectations. This step helps define whether the project needs a new design, DFM review, or both.
Heatscape develops mechanical concepts for the required thermal solution. This may include heatsink structures, brackets, shrouds, plenums, backing plates, cold plate interfaces, or custom assembly features.
The concept is converted into detailed 3D CAD models. The design is checked against system geometry, board layout, component keep-outs, airflow paths, and assembly access.
The design is reviewed for manufacturability, tolerance control, material selection, machining feasibility, assembly complexity, and cost efficiency. For build-to-print designs, this step helps identify risks before production.
Prototype parts can be built for fit checks, thermal testing, airflow validation, and mechanical evaluation. Any required changes can be made before the design moves into production.
Once validated, the final design can be prepared for manufacturing with drawings, tolerances, materials, surface finishes, and assembly requirements.
Heatscape’s current page shows examples such as pluggable card thermal solutions, multi-heatsink 1U server solutions, liquid-cooled loops, development kits, and 4U system-level mechanical and thermal design.
Common applications include:
Mechanical design supports heatsinks, air shrouds, ducts, backing plates, and liquid cooling interfaces in 1U, 2U, and 4U systems.
Custom brackets, heatsinks, stiffeners, and airflow guides help manage cooling in compact card-based systems.
Mechanical structures help maintain proper thermal contact, mounting force, and airflow around high-power components.
DFM helps with cold plate mounting, manifold layout, tube routing, sealing considerations, and serviceable assembly design.
Custom mechanical design can adapt thermal solutions to evaluation boards, test platforms, and proof-of-concept systems.
Start with the full system layout, not only the heatsink. The surrounding components often define what is actually possible.
Confirm keep-out zones early. Connectors, cables, screws, and service access can create mechanical conflicts later.
Do not over-tighten tolerances unless required. Overly tight tolerances can increase cost without improving performance.
Design for assembly, not just fit. A part that fits in CAD may still be difficult to install in production.
Review mounting pressure carefully. Too little pressure can reduce thermal performance, while too much pressure can damage the component or PCB.
Plan for production volume. A design that works for one prototype may need changes for scalable manufacturing.
For teams still evaluating cooling options, understanding heat sink design and thermal management can help define airflow, mounting, material, and manufacturability requirements before the DFM stage.
If your thermal solution needs to fit into a complex electronic system, move from prototype to production, or be reviewed for manufacturability, Heatscape can help. Our team supports custom mechanical design, DFM review, CAD modeling, thermal integration, prototyping, and production-ready manufacturing support.
Contact Heatscape to discuss your design requirements, request a DFM review, or get support for your next thermal and mechanical design project.
Custom mechanical design and DFM (Design for Manufacturability) services involve creating thermal solutions using CAD tools and optimizing them for efficient production. The goal is to ensure the design fits correctly, performs reliably, and can be manufactured at scale. These services bridge engineering and manufacturing, improving both thermal performance and production efficiency across the product lifecycle.
DFM means designing thermal solutions so they can be manufactured easily, cost-effectively, and consistently. It focuses on simplifying geometry, reducing part complexity, and aligning with available manufacturing processes. By considering production constraints early, DFM ensures reliable output, minimizes waste, and helps control overall product costs.
DFM helps prevent problems with fit, flatness, mounting pressure, material selection, assembly, and production repeatability. These factors can directly affect thermal performance, reliability, and manufacturing cost.
Yes. Heatscape can review customer-supplied build-to-print designs and recommend improvements related to manufacturability, tolerance control, assembly, and thermal integration.
DFM should be done as early as possible, ideally before prototype release or production tooling. Early review helps reduce redesigns, delays, manufacturing issues, and avoidable cost.
Mechanical design services include components such as shrouds, brackets, air plenums, backing plates, and mounting hardware. These elements support airflow management, structural stability, and system integration. Properly designed components ensure efficient cooling performance while maintaining mechanical integrity in complex assemblies.
Yes. Mechanical design can support cold plate integration, manifold layout, tube routing, mounting structures, sealing considerations, and system-level fit for liquid cooling assemblies.
A heatsink calculator helps estimate thermal performance by analyzing heat dissipation, airflow, and material properties to determine optimal cooling solutions.
