Beyond designing a thermally efficient heatsink, running finite element analysis is a critical step in determining if the mounting mechanism used is mechanically sound. Heatscape engineers sometimes design custom mounting hardware for their solutions, and FEA packages are used to verify the mounting concepts. FEA allows our design team to simulate deflections and stresses on metals to make determinations on product strength and robustness.

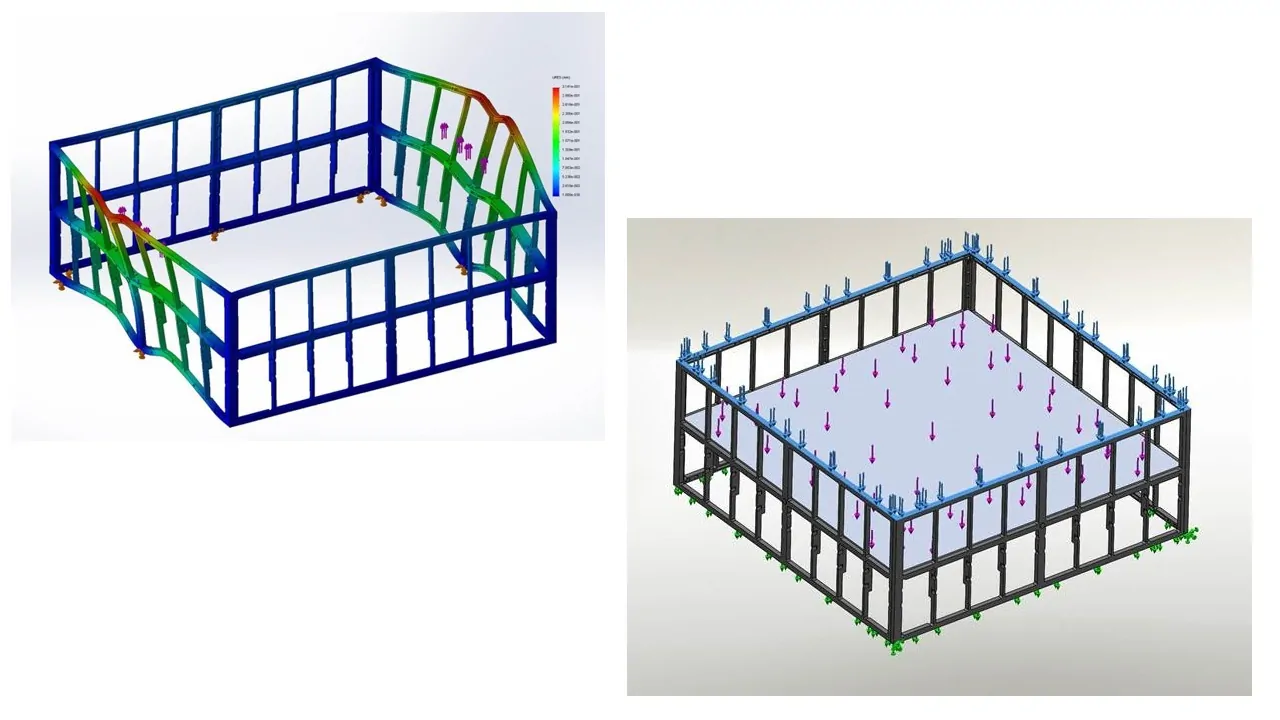

Chassis Level FEA

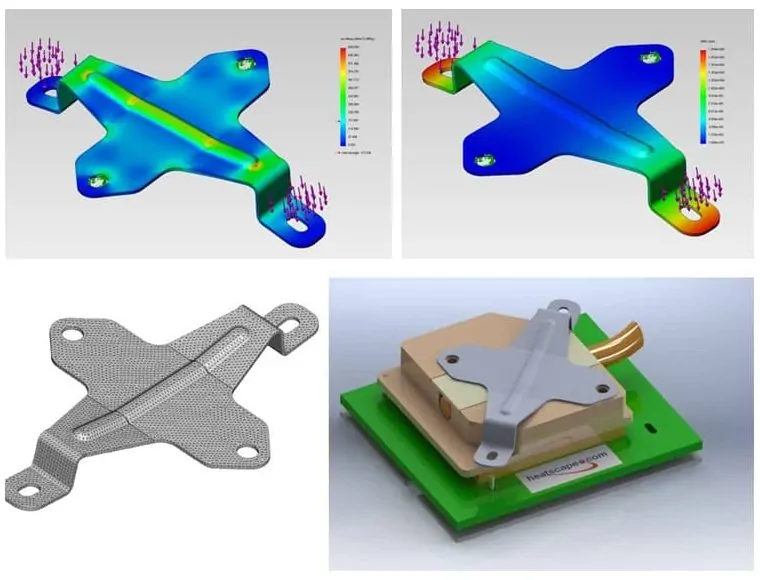

Mounting feature FEA

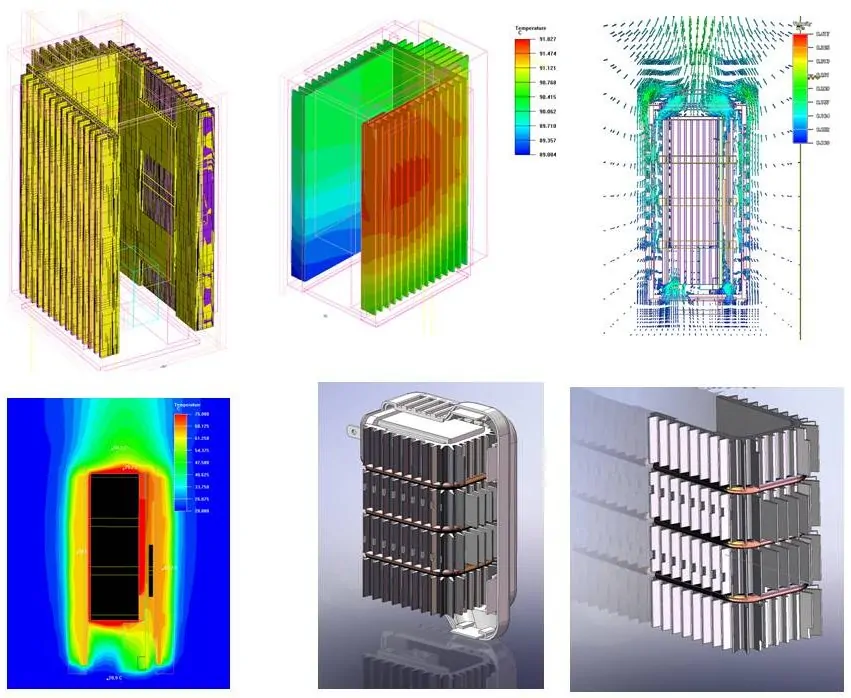

Heatsink Level FEA

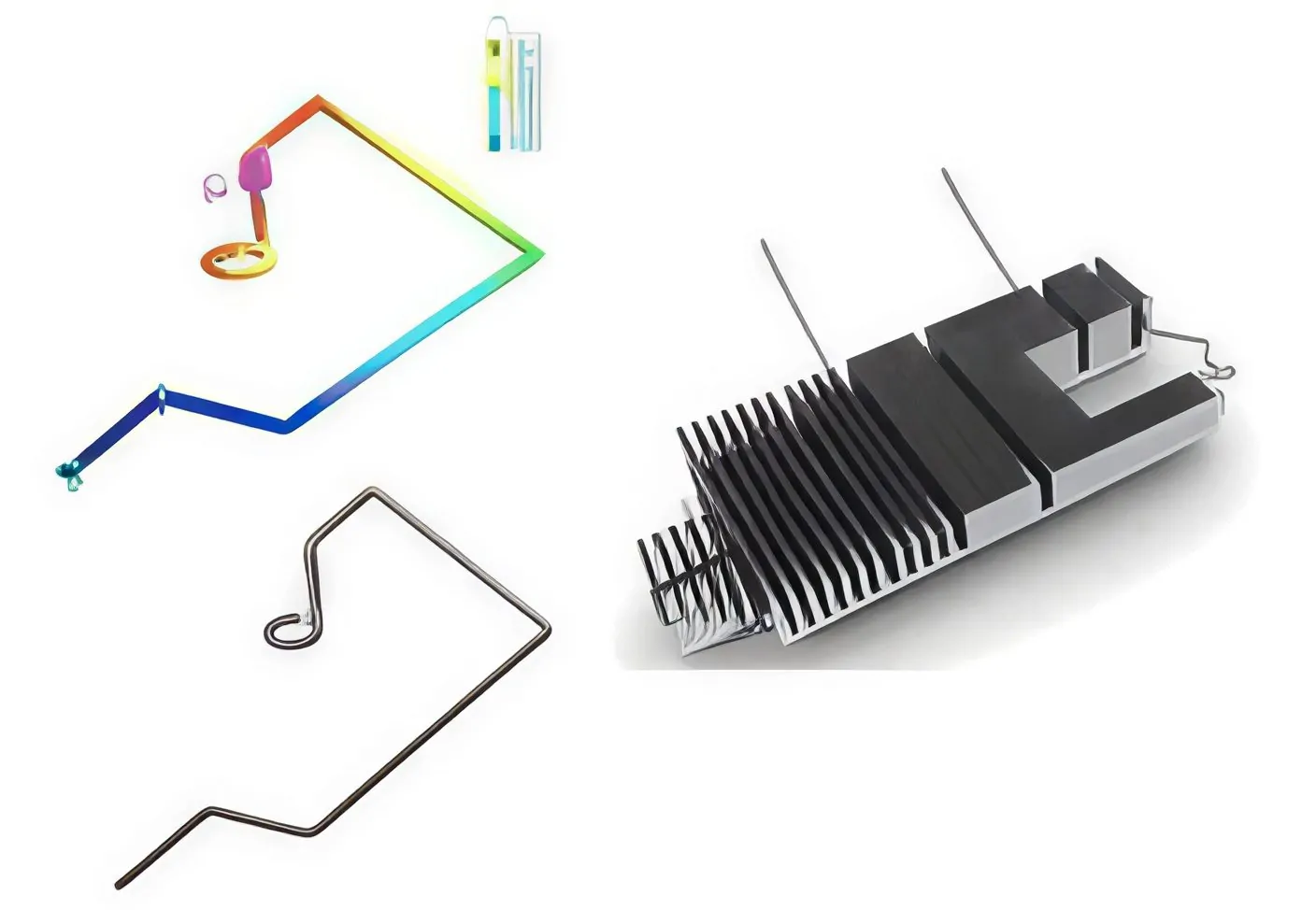

Clip Level FEA
Finite Element Analysis, or FEA, helps engineers evaluate whether a thermal solution is mechanically reliable before it moves into prototyping or production. In electronics cooling, FEA is commonly used to study stress, deflection, mounting pressure, contact behavior, material strength, and structural robustness in heatsinks, clips, brackets, chassis parts, backing plates, and other mechanical assemblies.
Heatscape uses FEA to verify mounting concepts, evaluate deflection and stress in metals, and confirm whether heatsink mounting hardware is mechanically sound. The existing FEA service page shows examples such as chassis-level FEA, mounting feature FEA, heatsink-level FEA, and clip-level FEA.
Finite Element Analysis is a simulation method that breaks a part or assembly into many small elements so engineers can predict how it will respond to force, pressure, heat, vibration, or mechanical loading.
For thermal systems, FEA is especially useful because cooling performance depends on more than heat dissipation. A heatsink may be thermally efficient, but it still needs proper mounting force, stable contact with the component, controlled deflection, and long-term structural reliability.
FEA can help answer questions such as:
FEA is recommended when the mechanical performance of a thermal solution affects product reliability, assembly quality, or thermal contact.
| Use FEA When… | Why It Matters |
| A heatsink uses custom mounting hardware | Confirms the mounting system provides stable force without damaging the component or PCB. |
| A clip, bracket, spring, or push-pin is under load | Helps evaluate stress, strain, and deflection before tooling or production. |
| The design has strict flatness or contact requirements | Proper contact pressure improves thermal interface performance. |
| The assembly may experience shock, vibration, or handling loads | Supports durability and long-term reliability. |
| A chassis or frame supports thermal components | Helps verify that the structure can handle weight, pressure, and installation loads. |
| A design is moving from prototype to production | Reduces the risk of late-stage mechanical failures or costly redesigns. |
Tip: Run FEA before finalizing mounting hardware. Small changes to clip geometry, material thickness, boss location, or screw placement can significantly improve strength and contact pressure.
Accurate FEA depends on accurate geometry, material data, loading conditions, and pass/fail requirements.
| Design Input | What to Provide | Why It Matters |
| CAD Geometry | STEP files, part models, assembly files, PCB outline, chassis geometry, mounting features, and keep-out zones. | Defines the structure being analyzed and shows where loads, contact, and constraints occur. |
| Material Properties | Aluminum, copper, steel, brass, plastics, spring materials, PCB material, modulus, yield strength, Poisson’s ratio, and thermal expansion data when needed. | Determines how each part bends, stresses, expands, or returns after loading. |
| Mounting Method | Screws, clips, springs, push-pins, brackets, backing plates, torque values, preload, and installation sequence. | Helps simulate real assembly conditions and mounting pressure. |
| Loads and Boundary Conditions | Applied forces, pressure, screw preload, contact points, fixed surfaces, gravity, shock, vibration, or handling loads. | Defines how the part will be stressed in actual use. |
| Thermal Interface Requirements | Contact area, interface flatness, TIM thickness, compression range, and target pressure. | Helps determine whether the design maintains proper thermal contact. |
| Performance Limits | Allowable stress, deflection limit, safety factor, maximum board strain, or component loading limits. | Provides clear criteria for whether the design passes or needs revision. |
| Production Constraints | Manufacturing process, tolerances, material thickness, forming method, machining limits, and assembly requirements. | Helps keep the design practical for production, not just simulation. |
FEA can verify whether a heatsink mounting system applies enough pressure while avoiding excessive board deflection or component stress. This is especially useful for custom heatsinks, where size, weight, mounting method, and thermal contact requirements vary by application.
Mounting clips and push-pins must provide stable pressure without yielding, loosening, or damaging the assembly. Heatscape’s existing page includes examples of clip-level and push-pin FEA for heatsink mounting.
Chassis-level FEA helps evaluate whether plastic or metal frames can support thermal components, mounting forces, and assembly loads.
FEA can help confirm whether mechanical support parts maintain alignment, control deflection, and distribute load properly across the PCB or system structure.
Where different materials are used together, FEA can help evaluate expansion-related stress and contact stability. This is useful for assemblies that include copper, aluminum, steel, brass, plastics, PCBs, and thermal interface materials.
FEA supports design-for-manufacturing decisions by identifying areas where material can be reduced, reinforced, simplified, or adjusted for repeatable assembly.
Use real mounting conditions whenever possible. Screw torque, spring force, clip preload, and contact assumptions strongly affect the result.
Do not ignore the PCB. Board deflection can affect component reliability and thermal interface contact.
Check both stress and displacement. A part may not fail structurally but may still bend enough to reduce thermal performance.
Define pass/fail limits early. The analysis should be measured against allowable stress, contact pressure, flatness, deflection, or safety factor.
Pair FEA with thermal testing when needed. Simulation is strongest when it supports physical validation and production decisions.
If your thermal solution depends on stable mounting pressure, structural strength, controlled deflection, or reliable mechanical integration, Heatscape can help. Our team supports FEA simulation, custom heatsink design, mounting hardware review, mechanical design, prototyping, and validation testing.
Contact Heatscape to review your CAD files, discuss your mounting requirements, or request an FEA quote for your next thermal design project.
FEA is used to evaluate stress, deflection, contact pressure, and mounting reliability in heatsinks and related mechanical parts. It helps confirm whether the design can maintain proper thermal contact without damaging the component, PCB, or mounting hardware.
No. FEA focuses on mechanical behavior such as stress, strain, deformation, and structural strength. CFD focuses on airflow, fluid flow, heat transfer, and pressure drop. Many thermal projects benefit from both.
FEA should be performed before prototype release, tooling, or production when the design includes custom mounting hardware, tight contact requirements, heavy heatsinks, clips, brackets, or structural support parts.
FEA can analyze heatsinks, clips, push-pins, brackets, backing plates, chassis frames, mounting bosses, sheet metal parts, plastic supports, and complete mechanical assemblies.
Yes. FEA can show how mounting pressure, heatsink weight, screw torque, or clip force affects PCB deflection. This helps engineers adjust the mounting design before the board or component is damaged.
Indirectly, yes. FEA helps confirm that the heatsink or cold plate maintains proper contact pressure with the heat source. Better contact can improve thermal interface performance and reduce thermal resistance.
No. FEA helps reduce design risk and guide engineering decisions, but physical testing is still important for final validation, especially for production or high-reliability systems.
