What It Is
Heatscape’s Quick Turn Prototyping and High Volume Manufacturing (HVM) services bridge the gap between initial concept validation and global, mass-market deployment. In thermal hardware engineering, moving from a finalized 3D model to a physical sample requires agility; transitioning that sample into automated, repeatable factory lines requires deep manufacturing discipline.
With engineering headquarters in Silicon Valley and advanced, wholly owned manufacturing facilities in Dongguan, China, we seamlessly scale advanced cooling architectures. We take concepts from rapid, low-tooling functional prototypes (CNC machined, rapid-stamped, or skived) directly into fully stabilized, multi-cavity, automated HVM assembly processes with rigid statistical quality controls.
When to Use It
Hardware development timelines are aggressively compressed, and a delay in thermal verification can stall entire product launches. You should utilize our synchronized prototyping-to-HVM service when:
- Accelerating Time-to-Market: You need fully functional engineering samples (NPI phase) in hand within days to conduct live Advanced Thermal Testing Facility evaluations.
- Mitigating Scaling Risks: You want to avoid the common “prototype-to-production disconnect” by utilizing a single partner who designs prototypes with eventual mass production constraints already in mind.
- Securing Global Supply Chains: Your architecture requires high-volume predictability—scaling from a dozen test units up to tens of thousands of units per week with consistent thermal performance and structural tolerances.
💡 Engineering Tip: Avoid over-specifying tolerances during the rapid prototyping phase if they cannot be cost-effectively replicated in high volume. For example, a tightly machined $\pm0.02\text{ mm}$ fin gap on a CNC-cut prototype may require prohibitively expensive progressive die tooling or slower cycle times when moving to automated mass production. Always run a comprehensive Design-for-Manufacturing (DFM) check before finalizing prototype geometries.
Required Design Inputs
To fast-track your rapid prototype and prepare your project file for smooth HVM scale-up, our production team requests:
- Fully Defined CAD Assemblies: Native SolidWorks, ProE, .STEP, or .IGS files including detailed dimensions, target pull directions, and keep-out zones.
- Material and Surface Treatment Requirements: Material grades (e.g., AL6063, C1100 Oxygen-Free Copper) and finishing specs (e.g., clear/black anodize, nickel plating, anti-oxidation coatings).
- Forecasted Volumes and Timeline: Estimated NPI sample quantities, target delivery dates, and projected ramp-up milestones for global mass production.
- Critical-to-Quality (CTQ) Dimensions: Explicit identification of surfaces requiring ultra-flat specifications, such as a baseplate flatness of $0.05\text{ mm}$ over $100\text{ mm}$ for optimal thermal interface mating.
The Prototyping to HVM Process
- DFM Analysis & Optimization: Our engineering team reviews your design files to optimize manufacturing cycle times, material utilization, and tooling configurations.

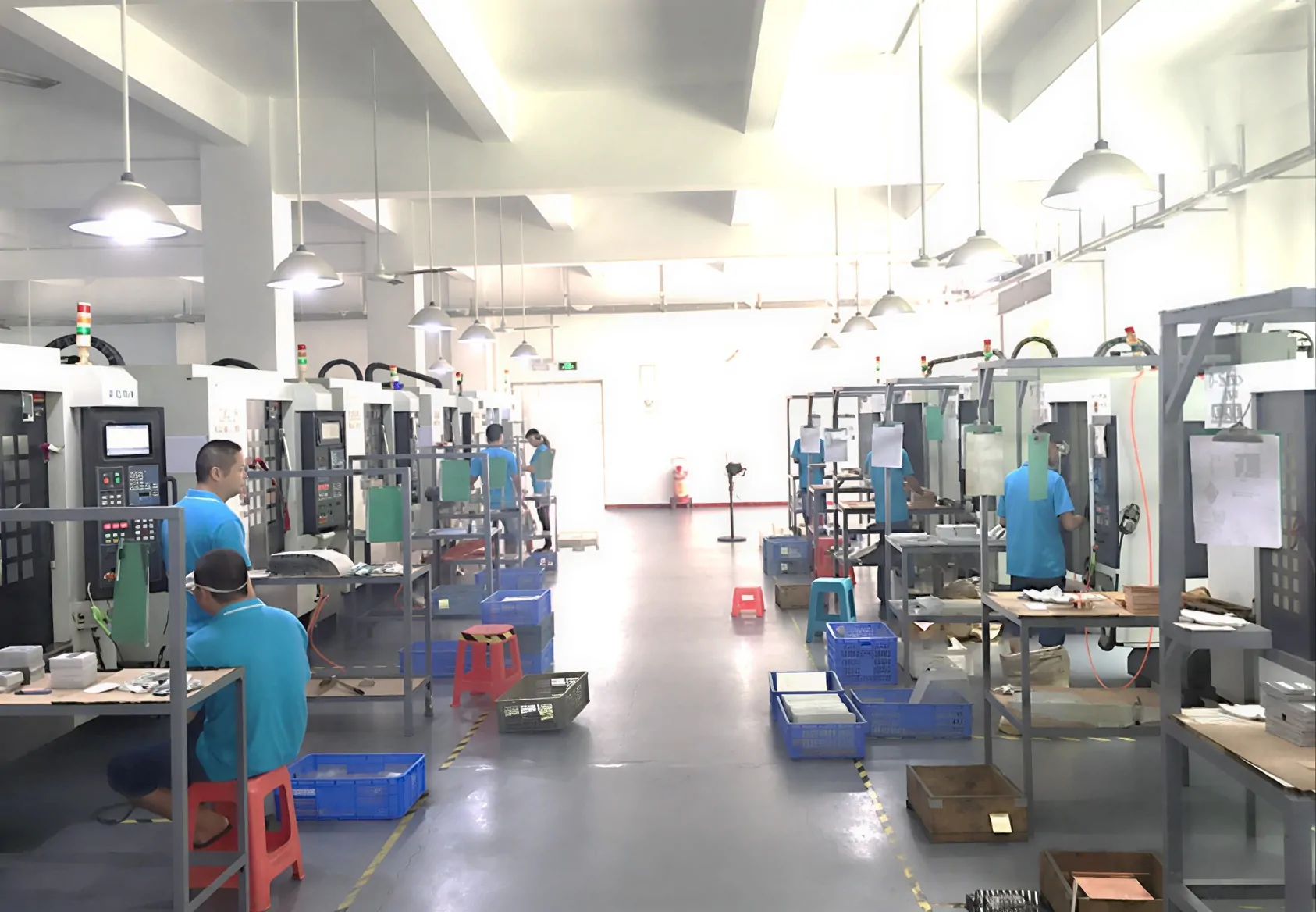

- Quick Turn Prototype Fabrication: Utilizing dedicated rapid-response machinery, we build functional prototypes without the long lead times of hard tooling—often using precision CNC machining or specialized manual skiving.

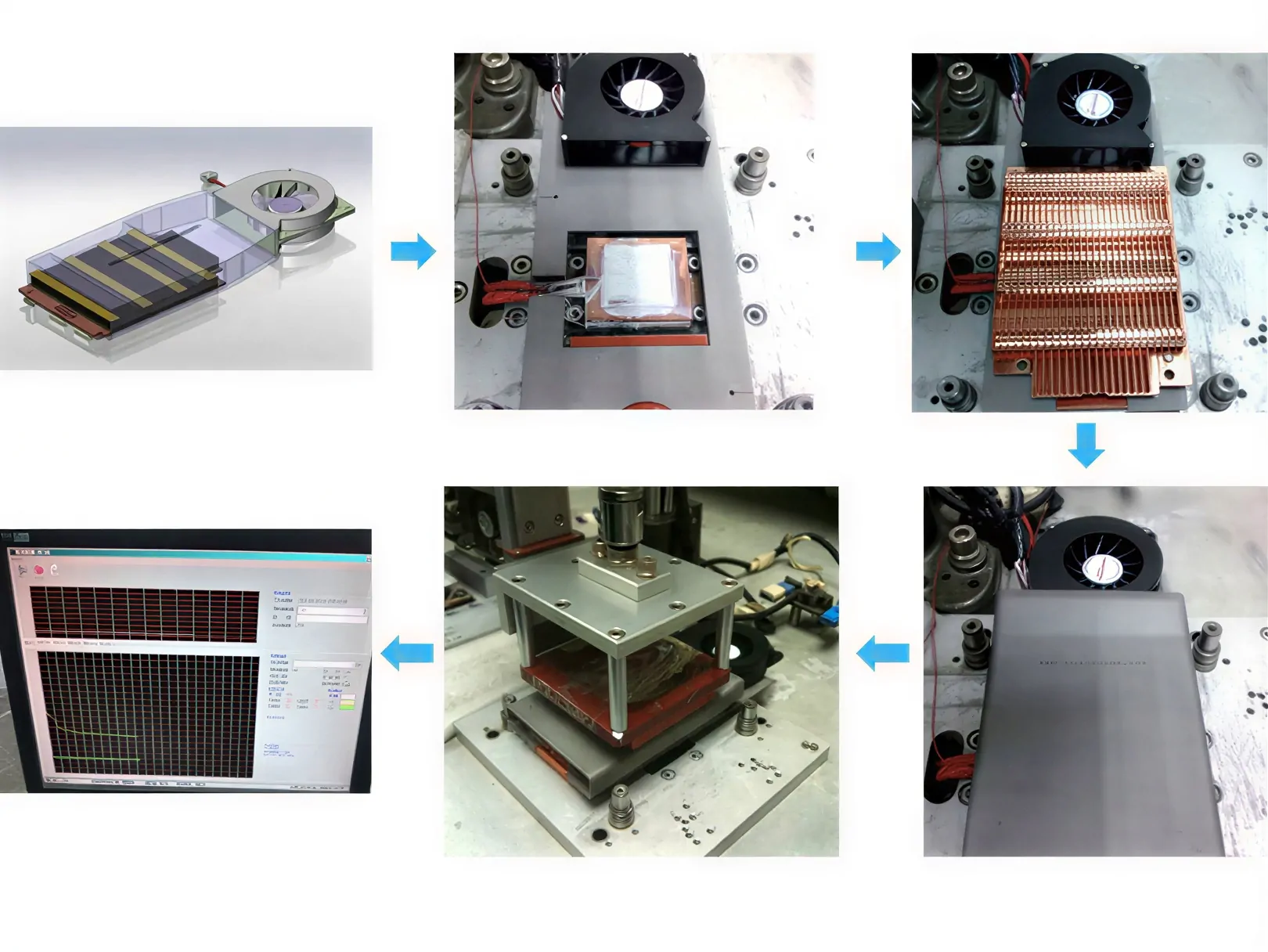

- Thermal & Mechanical Verification: Prototypes undergo dimensional checking and performance testing (such as checking pressure drop curves and thermal resistance values).

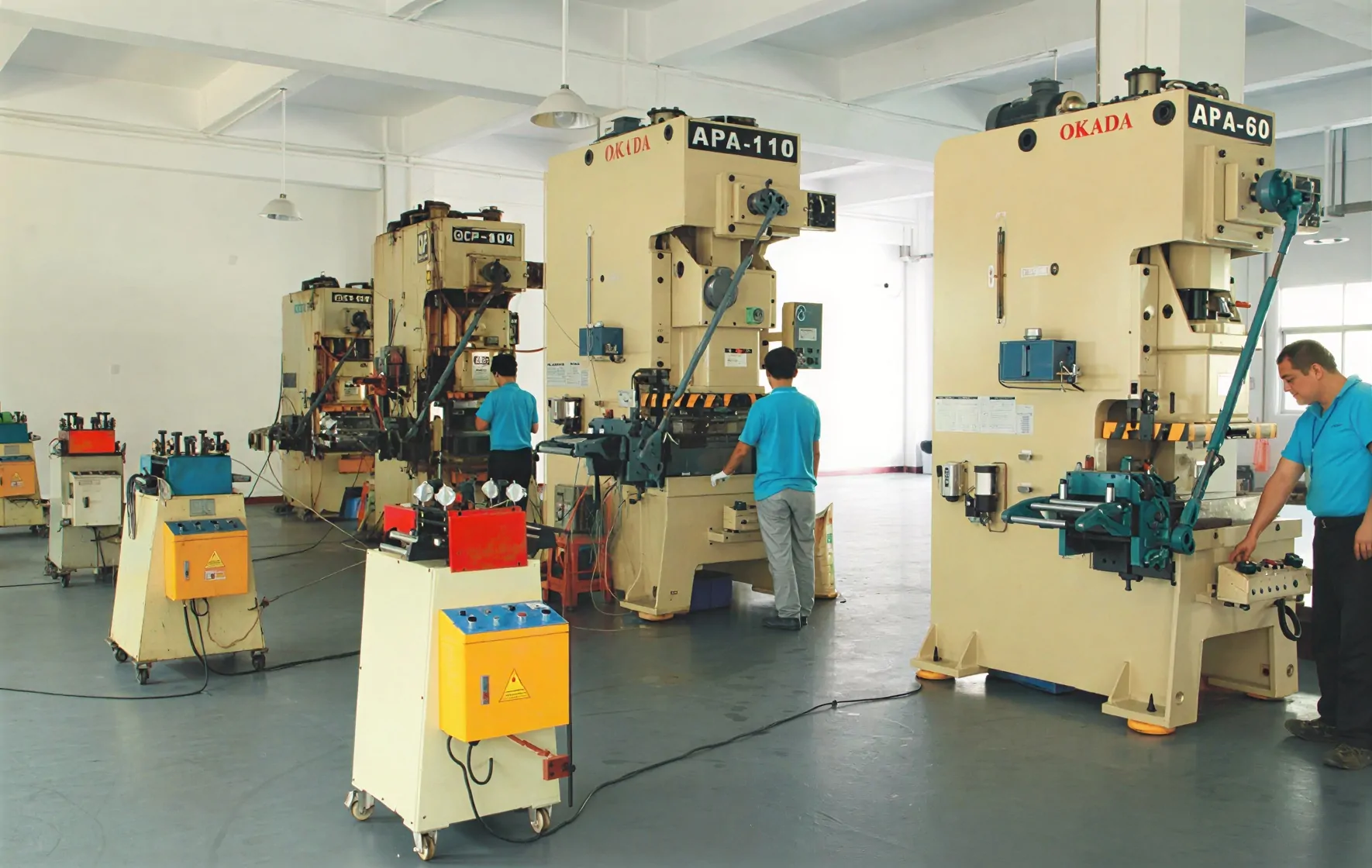

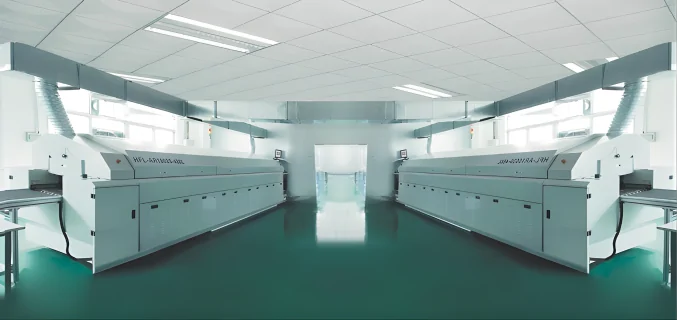

- Tooling Design & Pilot Run (NPI): We design and manufacture hard tooling, progressive dies, or automated solder-reflow fixtures to execute a controlled pilot production run.
- High-Volume Execution & SQC: Full HVM lines are activated. We deploy strict Statistical Quality Control (SQC), utilizing automated optical inspection (AOI), pressure-leak checks for liquid loops, and routine batch thermal stress tests to guarantee absolute consistency across millions of parts.
Applications
Our integrated manufacturing pipelines support a diverse suite of advanced thermal product families, delivering custom solutions directly to mass markets:
- AI, GPU, and Data Center Infrastructure: Scaling high-density, multi-layer cooling architectures engineered specifically to combat the industry’s 1000W+ GPU cooling crisis.
- Custom Heatsink Production: Mass manufacturing across various product categories—from cost-efficient Extruded Heatsinks for standard component footprints to dense Zipper Fin Heatsinks and complex, two-phase Vapor Chamber Heatsinks.
- Enclosure Mechanical Assemblies: Delivering turn-key sub-assemblies, including precision Stamped Sheet Metal Bolster Plates, fan shrouds, and airflow plenums integrated directly onto custom heat dissipation frames.
Scale From Concept to Mass Volume Seamlessly
Don’t let manufacturing bottlenecks delay your next product release. Partner with Heatscape to guarantee rapid, data-verified prototypes that scale smoothly into robust high-volume production lines.
Contact Our Manufacturing and NPI Team Today to upload your design files, request a quick-turn quote, or schedule a detailed technical DFM review.
