Choosing between a skived copper heatsink and an aluminum extrusion heatsink is not simply a question of which material conducts heat better.
Copper offers approximately 400 W/m·K thermal conductivity compared with roughly 200 W/m·K for commonly used aluminum heatsink alloys. But heatsink performance also depends on fin geometry, airflow, heat-source concentration, available space, weight, pressure drop, manufacturing requirements, and cost.
For many electronics applications, aluminum extrusion remains a practical and cost-effective cooling solution. As power density increases and the available cooling envelope becomes smaller, however, skived copper can provide important advantages.
Understanding where those advantages actually matter can help engineers select a thermal architecture based on system requirements rather than material conductivity alone.
Skived Copper vs. Aluminum Heatsinks at a Glance
| Factor | Skived Copper Heatsink | Aluminum Extrusion Heatsink |
| Thermal conductivity | Approximately 400 W/m·K | Approximately 200 W/m·K |
| Heat spreading | Excellent | Good |
| Fin density | Very high | More limited |
| Fin thickness | Very thin fins possible | Constrained by extrusion process |
| Weight | High | Low |
| Tooling | Flexible for changing geometries | Custom die typically required |
| Production economics | Higher material and piece cost | Economical at production volume |
| Best suited for | High heat flux and compact systems | Broad range of general electronics |
| Airflow considerations | High fin density may increase pressure drop | Often easier to optimize for airflow |

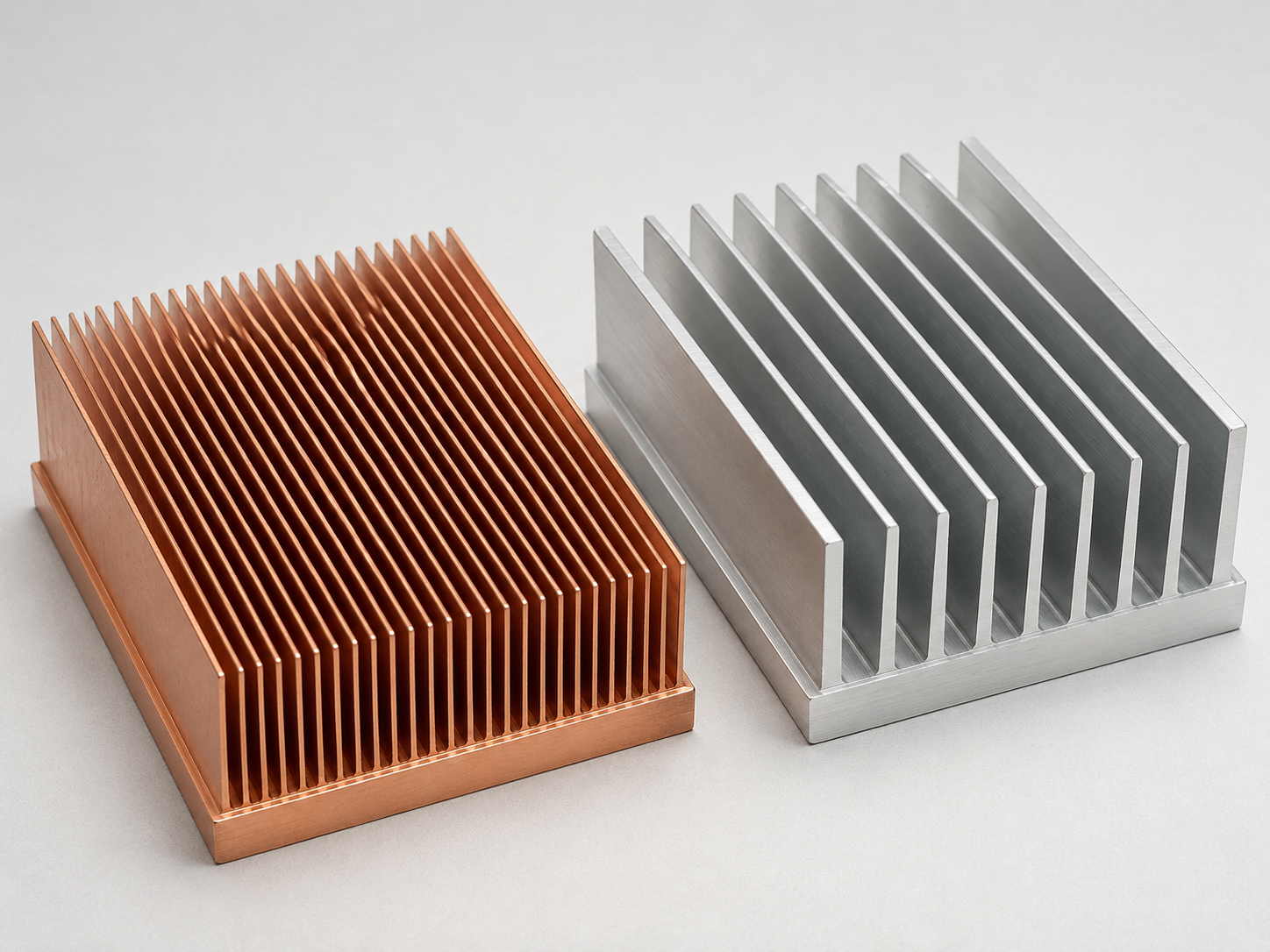

What Is a Skived Copper Heatsink?
A skived heatsink is produced by cutting and forming fins directly from a solid block of metal. Because the fins remain integral to the base, there is no separate fin-to-base bonding interface.
The skiving process can also produce thinner fins at tighter pitches than many conventional extrusion processes. This allows engineers to increase heat-transfer surface area without significantly increasing the overall heatsink footprint.
Heatscape’s skiving and microskiving heatsinks are designed for applications requiring high fin density, compact cooling performance, and strong thermal conductivity.
Skived copper becomes particularly useful when:
- Heat comes from a small, concentrated source.
- The heatsink footprint cannot increase.
- Base spreading resistance is limiting performance.
- Very thin, closely spaced fins are required.
- Temperature uniformity across the heatsink is important.
- More heat must be dissipated within a restricted cooling volume.
The higher conductivity of copper helps move heat laterally through the heatsink base so that a larger portion of the fin field can participate in heat rejection.
What Is an Aluminum Extrusion Heatsink?
An aluminum extrusion heatsink is manufactured by pushing heated aluminum through a shaped die to create a continuous finned profile.
Extrusion is one of the most widely used heatsink manufacturing methods because it provides a strong balance between thermal performance, weight, manufacturing scalability, and cost.
Heatscape’s extruded heatsinks can support straightforward cooling applications as well as more customized thermal solutions using secondary machining and additional thermal features.
Aluminum extrusion is especially attractive when:
- Thermal requirements are moderate.
- Low weight is important.
- Production quantities justify extrusion tooling.
- Required fin geometry can be produced through extrusion.
- Cost efficiency is an important design requirement.
- A common profile can support multiple product configurations.
For many electronic systems, these advantages make aluminum the logical starting point.
Copper vs. Aluminum Thermal Conductivity
One of the clearest differences between the two materials is thermal conductivity.
Copper provides approximately 400 W/m·K compared with roughly 200 W/m·K for commonly used aluminum heatsink alloys. This allows copper to move heat through the heatsink structure more effectively.
That difference becomes especially important when a high-power processor, ASIC, power semiconductor, laser, or similar component transfers substantial heat through a relatively small contact area.

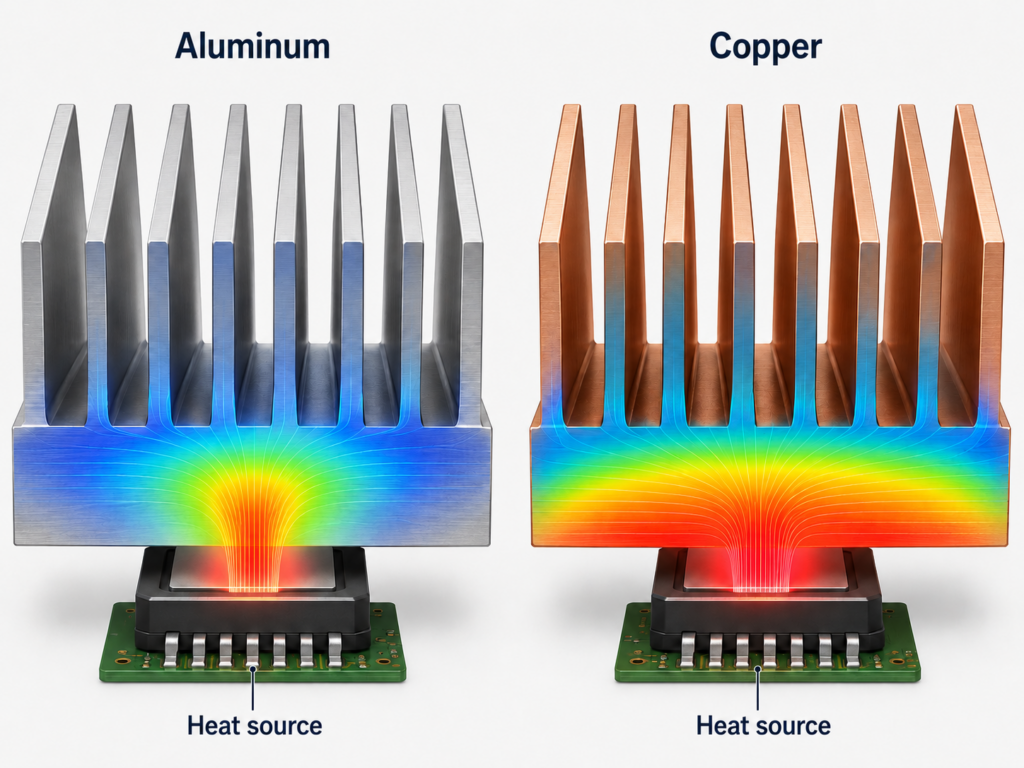

Heat initially entering the center of a heatsink must spread across the base before the entire fin array can effectively dissipate it.
When base spreading resistance becomes too high, fins closest to the heat source may operate at much higher temperatures while fins farther away remain underutilized.
Copper can help distribute that heat more evenly.
However, twice the thermal conductivity does not mean twice the cooling performance.
The total thermal path also includes:
- Thermal interface resistance
- Base spreading resistance
- Fin conduction
- Airflow
- Convection
- System exhaust
If convection or interface resistance is the dominant thermal bottleneck, switching from aluminum to copper may provide only a limited improvement.
Fin Density Can Matter as Much as Material
The difference between skiving and extrusion is not only about copper versus aluminum. The manufacturing process also changes what fin geometry is possible.
Extrusion places practical restrictions on parameters such as fin thickness, fin height, spacing, and aspect ratio.
Skiving can produce thinner fins with tighter spacing, allowing more heat-transfer surface area to fit inside a limited footprint.
This makes skiving especially useful for compact, high-power electronic assemblies where available heatsink volume is tightly constrained.
But maximizing fin count is not automatically the best thermal strategy.
How Airflow and Pressure Drop Affect Heatsink Performance
Adding more fins increases surface area, but it also reduces the open space available for airflow.
As fin spacing becomes tighter, airflow resistance increases.
If the system fan cannot generate enough static pressure to overcome that resistance, airflow through the heatsink can decrease. Air may also bypass the fin field instead of moving through it.
The result is an important engineering principle:
Fin density should be optimized for the available airflow—not simply maximized geometrically.
Engineers should evaluate:
- Fan curve
- Available static pressure
- Fin spacing
- Fin length
- Chassis restrictions
- Nearby components
- Airflow direction
- Inlet and outlet restrictions
- Allowable system pressure drop
Computational Fluid Dynamics (CFD) analysis can help evaluate these interactions at the heatsink, board, chassis, and complete-system level before a thermal design is finalized.
CFD is particularly useful when deciding whether the additional surface area of a high-density skived heatsink actually produces better system-level cooling.
Weight, Tooling, Cost, and Production Volume
Thermal performance cannot be considered independently from manufacturing requirements.
Aluminum Extrusion
Custom aluminum extrusion typically requires an extrusion die, creating an upfront tooling investment.
Once the profile is established, however, extrusion can become highly economical for repeated production. Secondary machining can also add mounting holes, pockets, threaded features, cross-cuts, and other custom geometry.
Aluminum is particularly attractive when production quantities justify tooling and the same extrusion profile can be used across multiple assemblies.
Skived Copper
Skiving does not require the same type of dedicated extrusion profile, which can provide greater flexibility while dimensions are still evolving.
The tradeoff is material cost and mass.
Copper is roughly three times as dense as aluminum. A geometrically similar copper heatsink can therefore introduce a substantial weight increase.
This matters in applications such as:
- Rack-mounted systems
- PCIe assemblies
- Aerospace electronics
- Mobile equipment
- Shock- and vibration-sensitive hardware
The thermal benefit of copper therefore needs to justify the added weight and cost.
When Should You Choose a Skived Copper Heatsink?
A skived copper heatsink is worth evaluating when the current thermal architecture is approaching a practical limit.
Consider skived copper when:
- Heat flux is high. A large amount of heat is entering through a relatively small source area.
- The cooling envelope is restricted. The heatsink cannot become significantly larger.
- Base spreading resistance is significant. Heat is not reaching the entire fin field effectively.
- High fin density is required. Extrusion cannot provide the required fin thickness or spacing.
- Temperature uniformity is important. Heat needs to spread more evenly across the heatsink.
- Higher cooling capacity is required without increasing volume.
Copper skiving should solve a measurable thermal constraint rather than being selected simply because copper has higher conductivity.
When Is Aluminum Extrusion the Better Choice?
Aluminum extrusion remains the better choice when it already satisfies the application’s thermal requirements.
Start with aluminum when:
- Heat loads are moderate.
- Weight needs to remain low.
- Cost is a major consideration.
- Production volume is substantial.
- Required geometry is compatible with extrusion.
- A reusable extrusion profile can support multiple products.
- Simulation or testing shows that copper would provide little system-level benefit.
Moving to copper when aluminum already meets the component temperature target may add weight and cost without providing enough practical improvement.
Evaluate the Complete Thermal Path
One of the most common thermal design mistakes is comparing heatsinks as isolated components.
Instead, engineers should examine the complete heat-transfer path:
Heat source → TIM/contact interface → base spreading → fin conduction → convection → system exhaust
A copper heatsink will provide the greatest benefit when base spreading, fin conduction, or available surface area is restricting heat transfer.
If the bottleneck occurs somewhere else, another design change may be more effective.
For example:
- Poor TIM contact: Improve interface flatness, contact pressure, or TIM selection.
- Uneven airflow: Modify ducts, shrouds, or fan placement.
- Localized hotspots: Consider a heatpipe or vapor chamber.
- Excessive fin pressure drop: Increase fin spacing or change fin architecture.
- Air cooling has reached its limit: Evaluate liquid cooling.
- Mechanical geometry is still evolving: Perform a manufacturability review before committing to tooling.
Heatscape’s custom mechanical design and DFM services can help evaluate fit, mounting, airflow, tolerances, material selection, and manufacturability before the design enters production.
Moving From Heatsink Design to Production
The best heatsink design must do more than meet a simulation target. It also needs to be practical to manufacture consistently.
During development, engineers should consider:
- Material availability
- Critical tolerances
- Base flatness
- Fin geometry
- Mounting features
- Surface treatment
- Prototype quantities
- Production volume
- Assembly requirements
Early prototyping can help identify thermal and mechanical issues before production tooling is finalized.
Heatscape provides quick-turn prototyping and high-volume manufacturing support to help move thermal solutions from design validation into practical production.
Skived Copper vs. Aluminum: Which Should You Choose?
There is no universal winner in the skived copper vs. aluminum heatsink comparison.
For many applications, aluminum extrusion provides the best combination of performance, low weight, manufacturability, scalability, and cost.
Skived copper becomes more valuable as thermal constraints become more aggressive—particularly when high heat flux, limited cooling volume, base spreading resistance, or demanding fin geometry prevents an aluminum extrusion from reaching the required temperature target.
The correct decision should be based on the complete system:
thermal performance + airflow + size + weight + manufacturability + production volume + cost
If an aluminum extrusion can meet those requirements, it is often the more economical solution.
If it cannot, skived copper may provide the additional heat spreading and fin density needed to reach the next level of cooling performance.
